LX27 Gen 2 Lightweight Rooftop Tent
Rugged. Low Profile. Adventure-Ready.

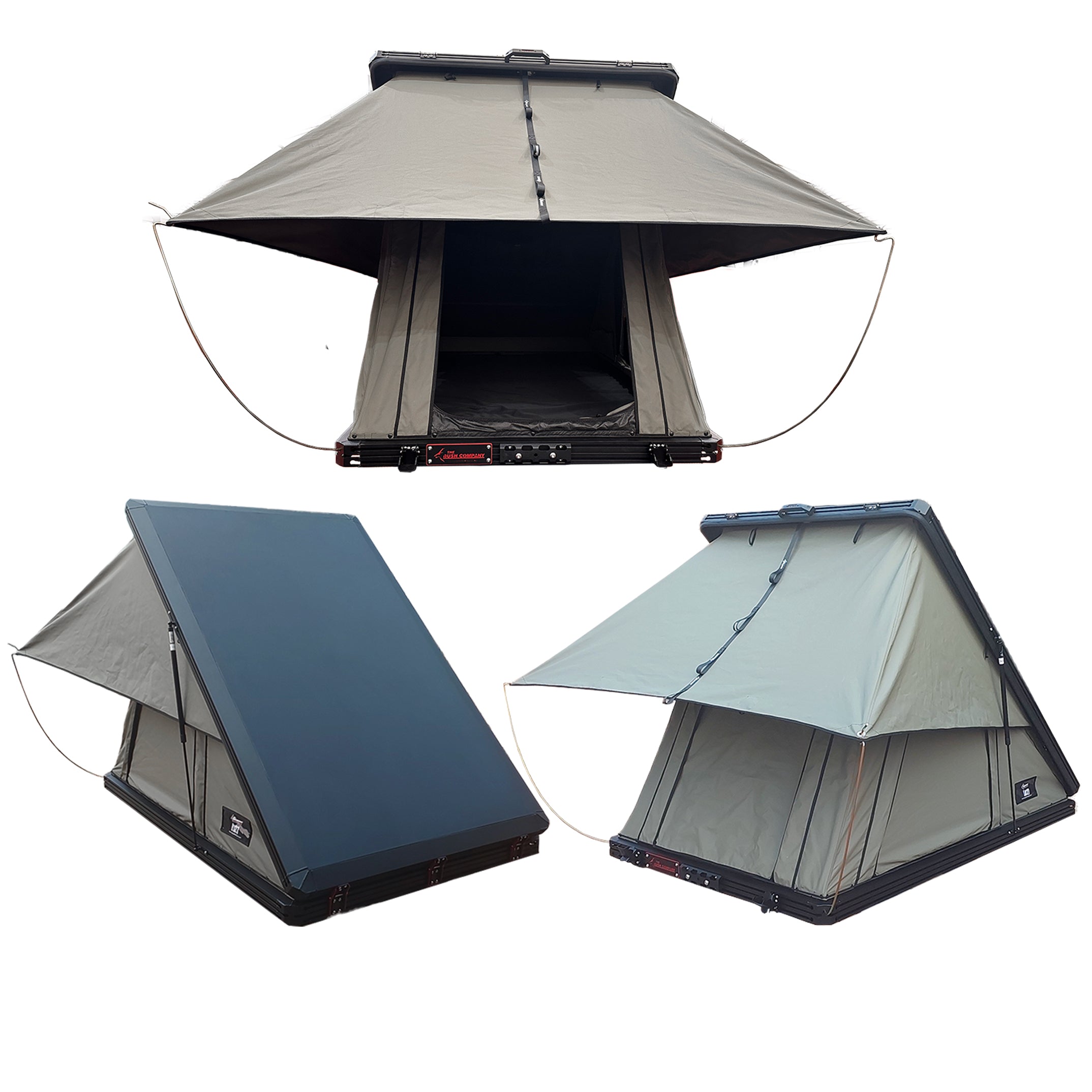

The LX27 Gen 2 Lightweight Rooftop Tent – Sleek. Rugged. Built to Explore. The LX27 Gen 2 is The Bush Company’s ultimate lightweight clamshell tent. Weighing only 81kg with a ultra-slim 176mm profile, it easily clears garage doors and keeps your rig's center of gravity low. Setup takes under 60 seconds thanks to heavy-duty gas struts, and you can leave your bedding packed inside. Engineered with a seam-welded aluminum frame and heavy-duty 260gsm dual-layer ripstop canvas, it’s built to survive the elements. Inside, enjoy a generous 1.6m of headroom, a premium 70mm dual-layer mattress, and full 12V power (USB-A/C, sockets, and tri-color LED lighting). Plus, it supports up to 100kg of roof cargo when closed. The ultimate setup for 4WDs, canopy builds, and off-road campers.
Description
LX27 Gen 2 Lightweight Roof top tent
Discover the perfect balance of rugged durability, lightweight design, and effortless setup with The Bush Company’s LX27 Gen 2 Lightweight Rooftop Tent. Engineered for 4WD touring, overlanding, and remote camping, the LX27 Gen 2 delivers premium performance without the weight penalty.
Featherweight Frame, Full-Sized Comfort

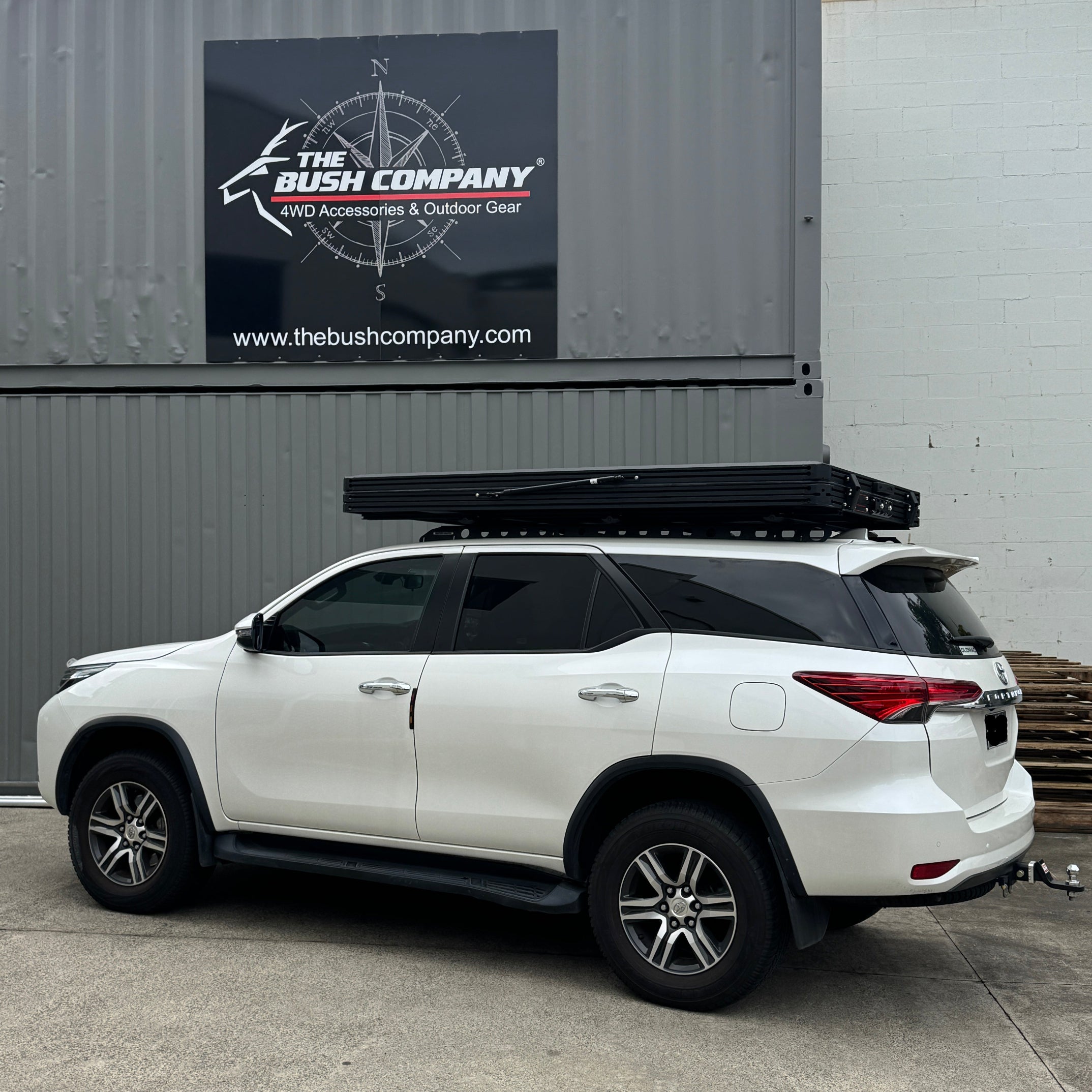

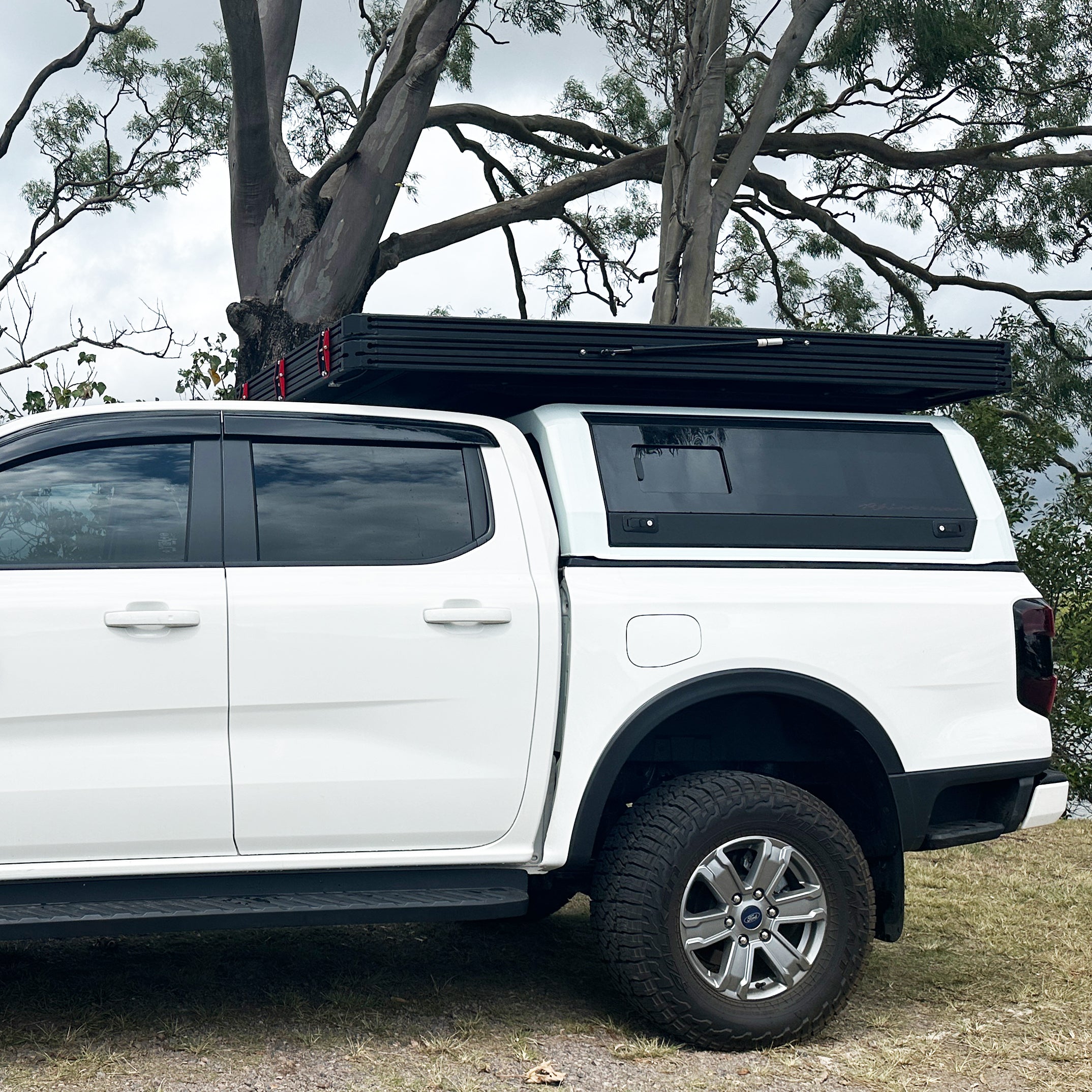

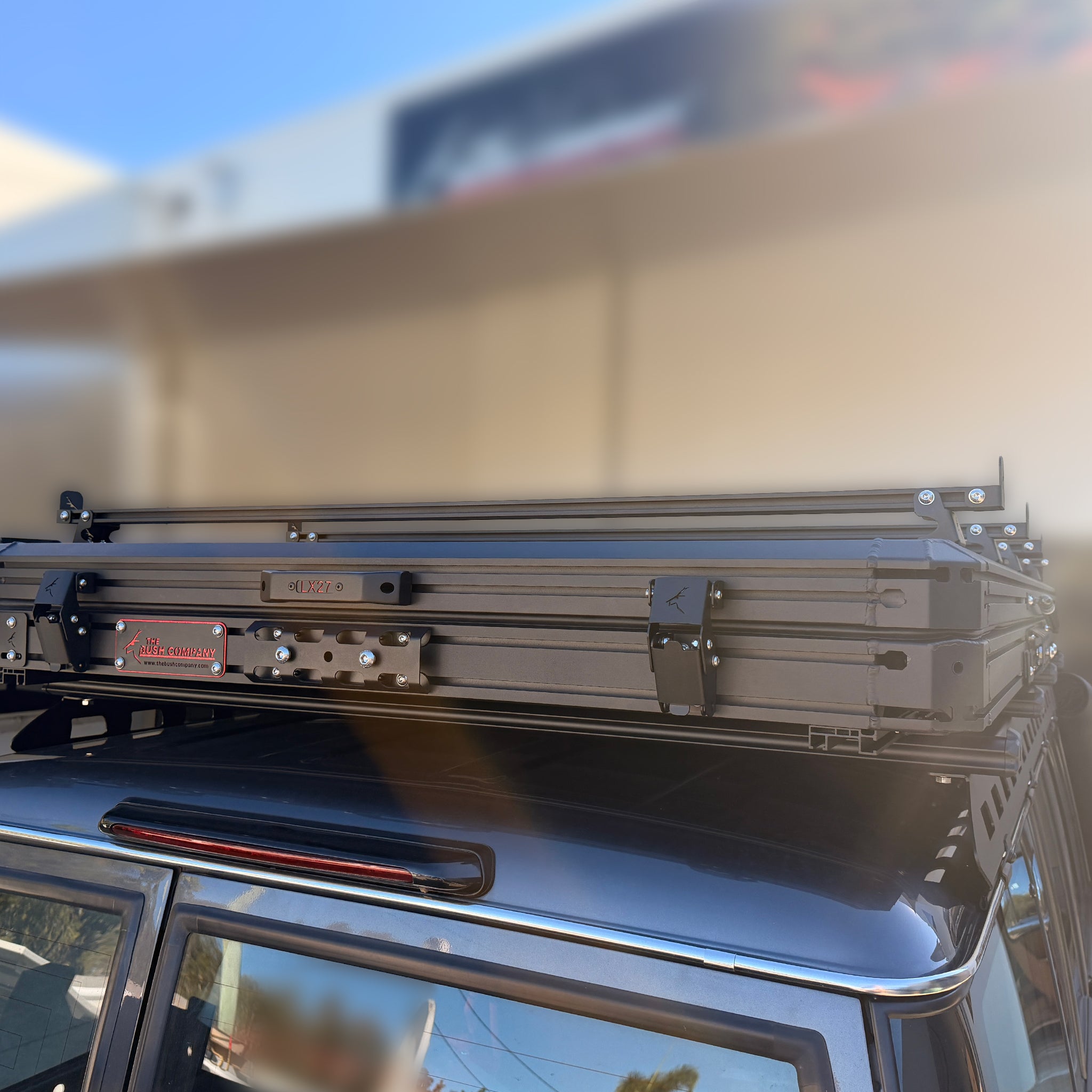

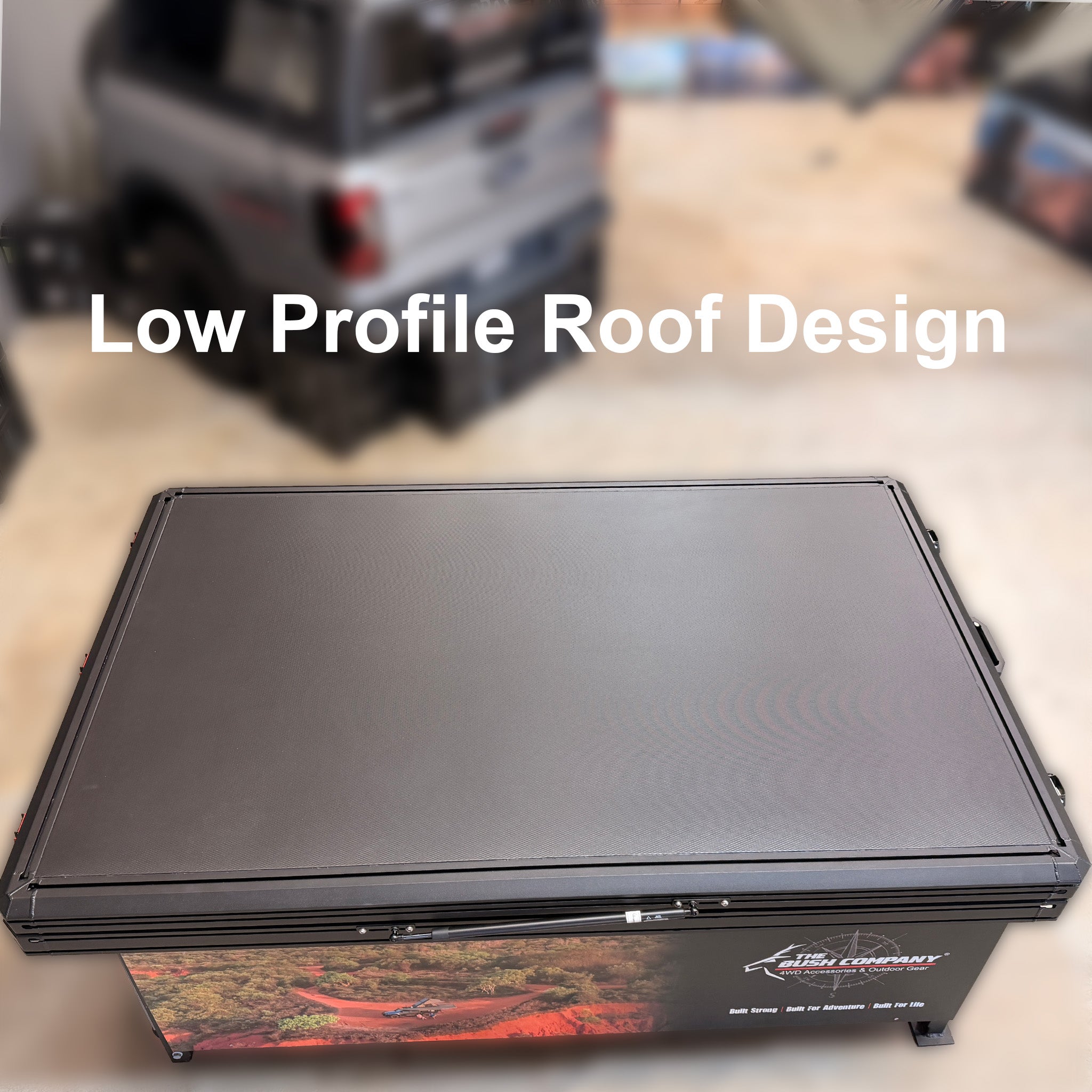

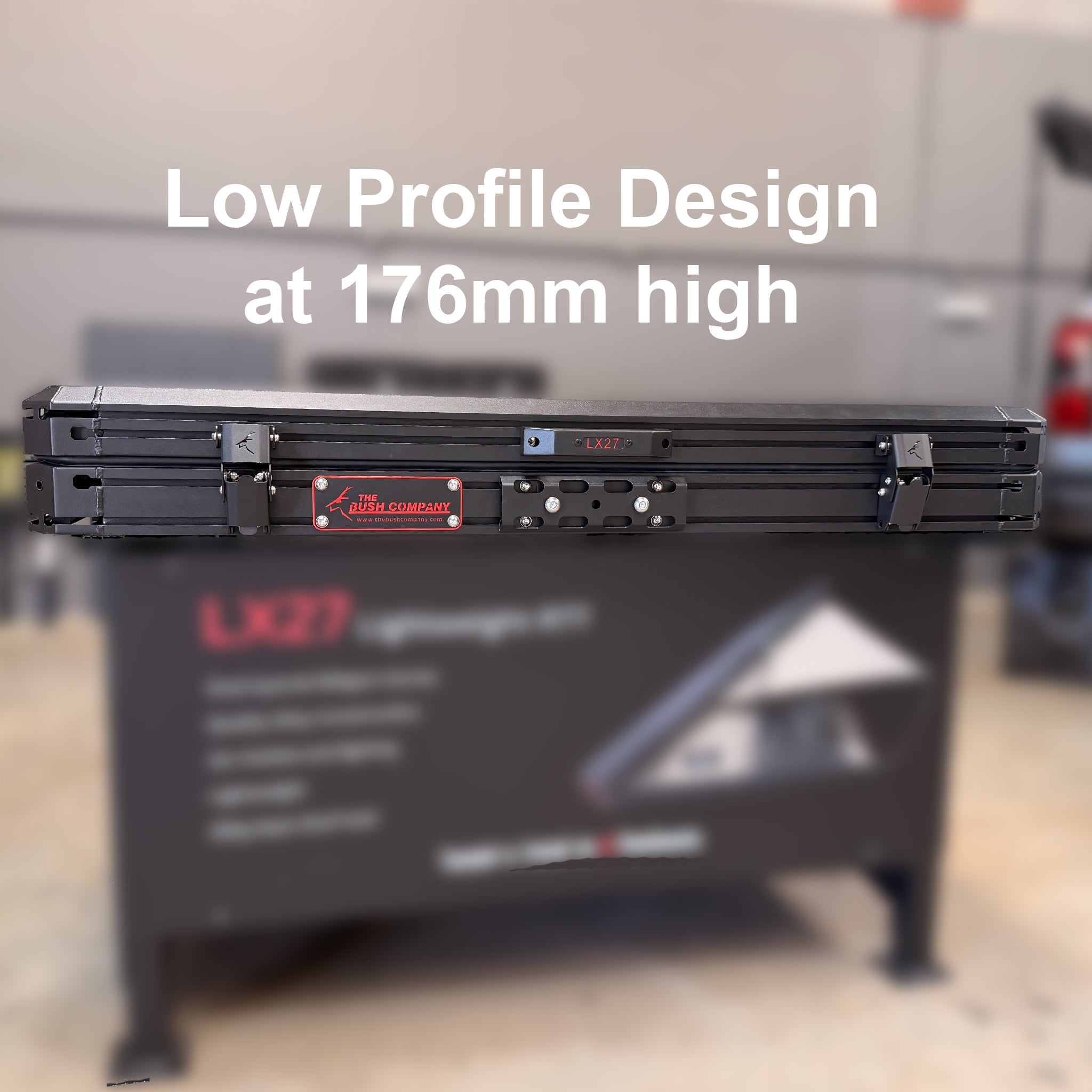

Weighing just 81kg, the LX27 Gen 2 is the lightest hardshell tent in The Bush Company’s lineup. Its ultra-low 176mm closed height is garage-friendly and improves vehicle aerodynamics. Despite its slim build, it opens to a spacious 1.6m internal height—enough room to sit upright and move comfortably after a long day on the tracks. You can also leave your bedding stored inside when the tent is closed, thanks to 70mm of internal clearance.
Built for Fast Setup. Ready for Harsh Conditions.

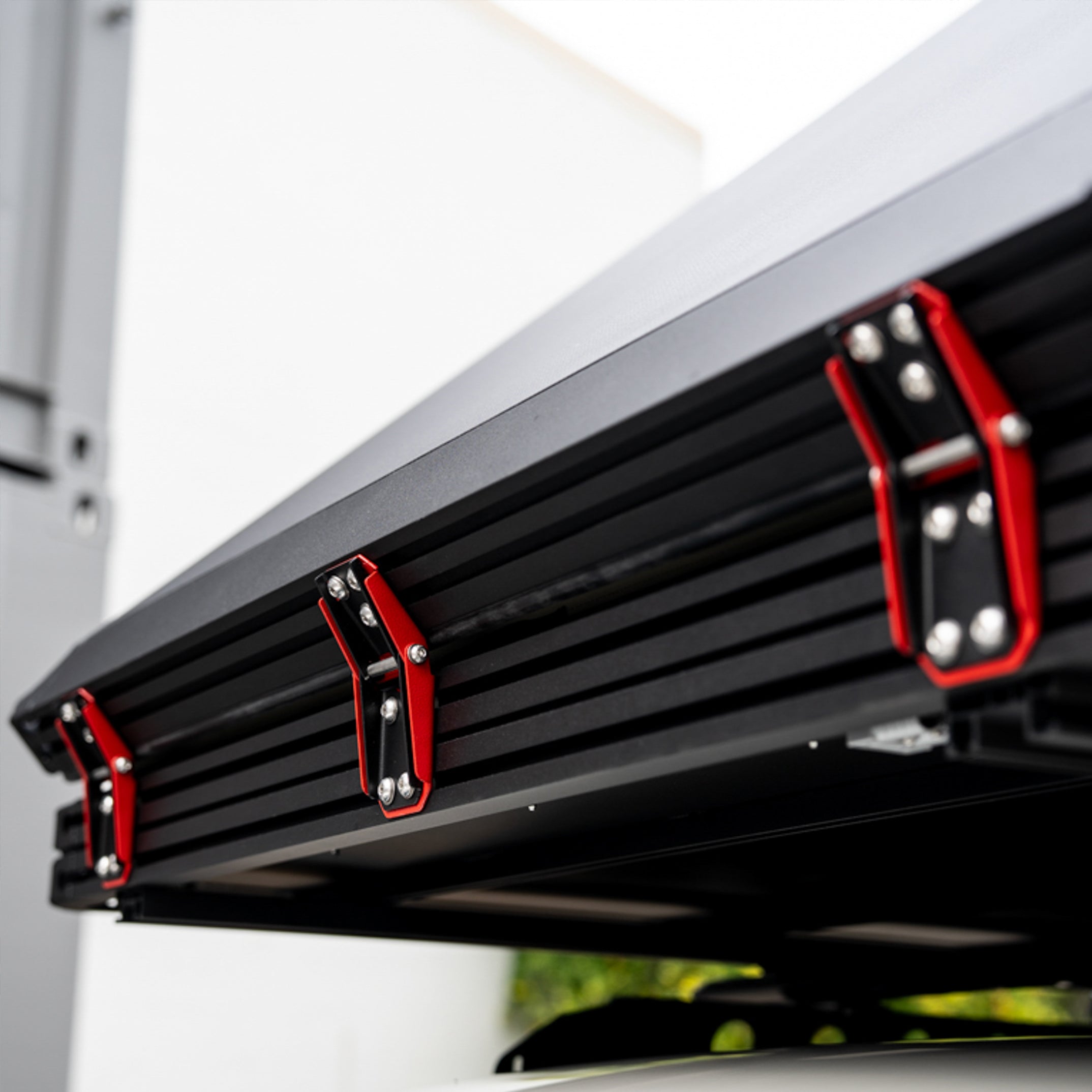

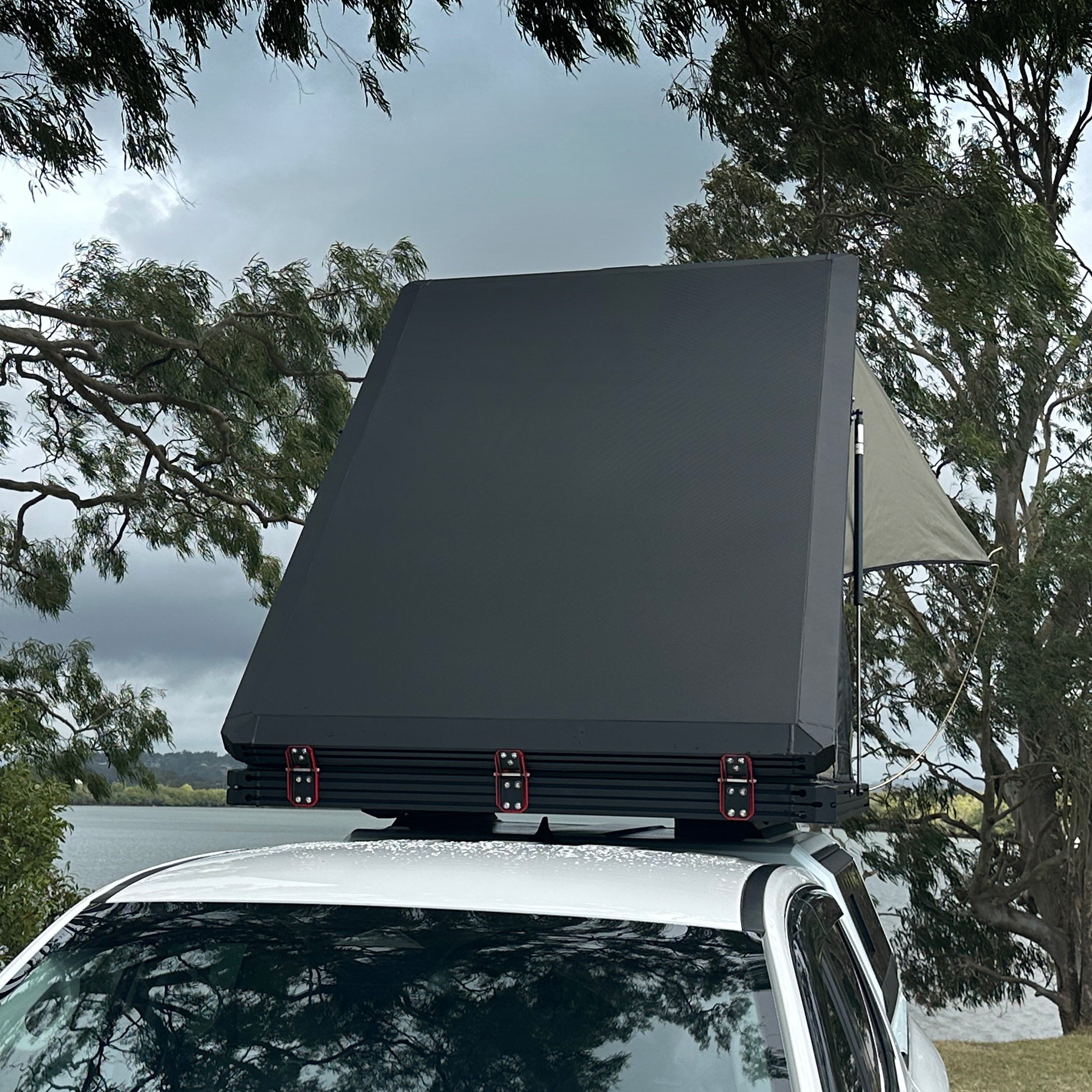

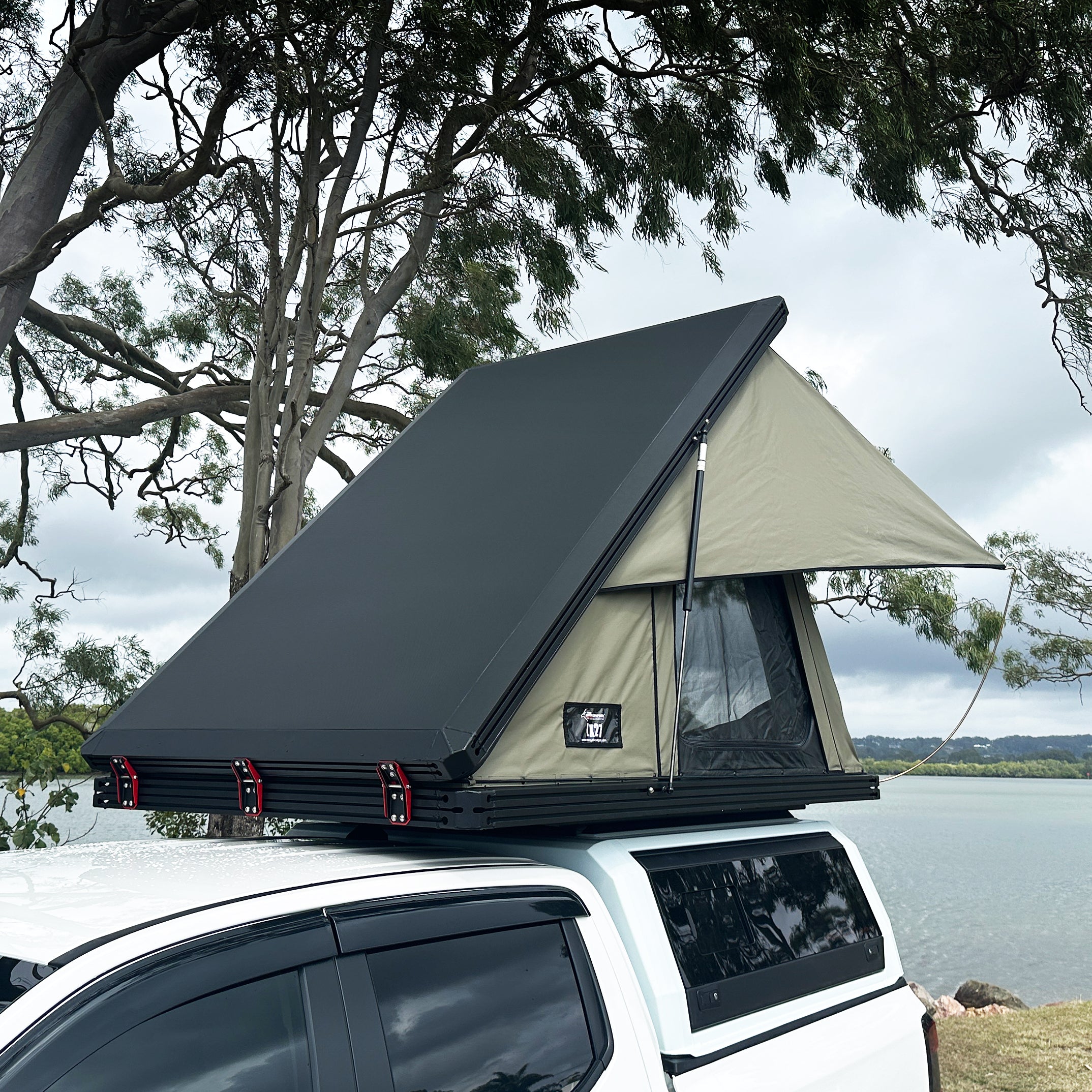

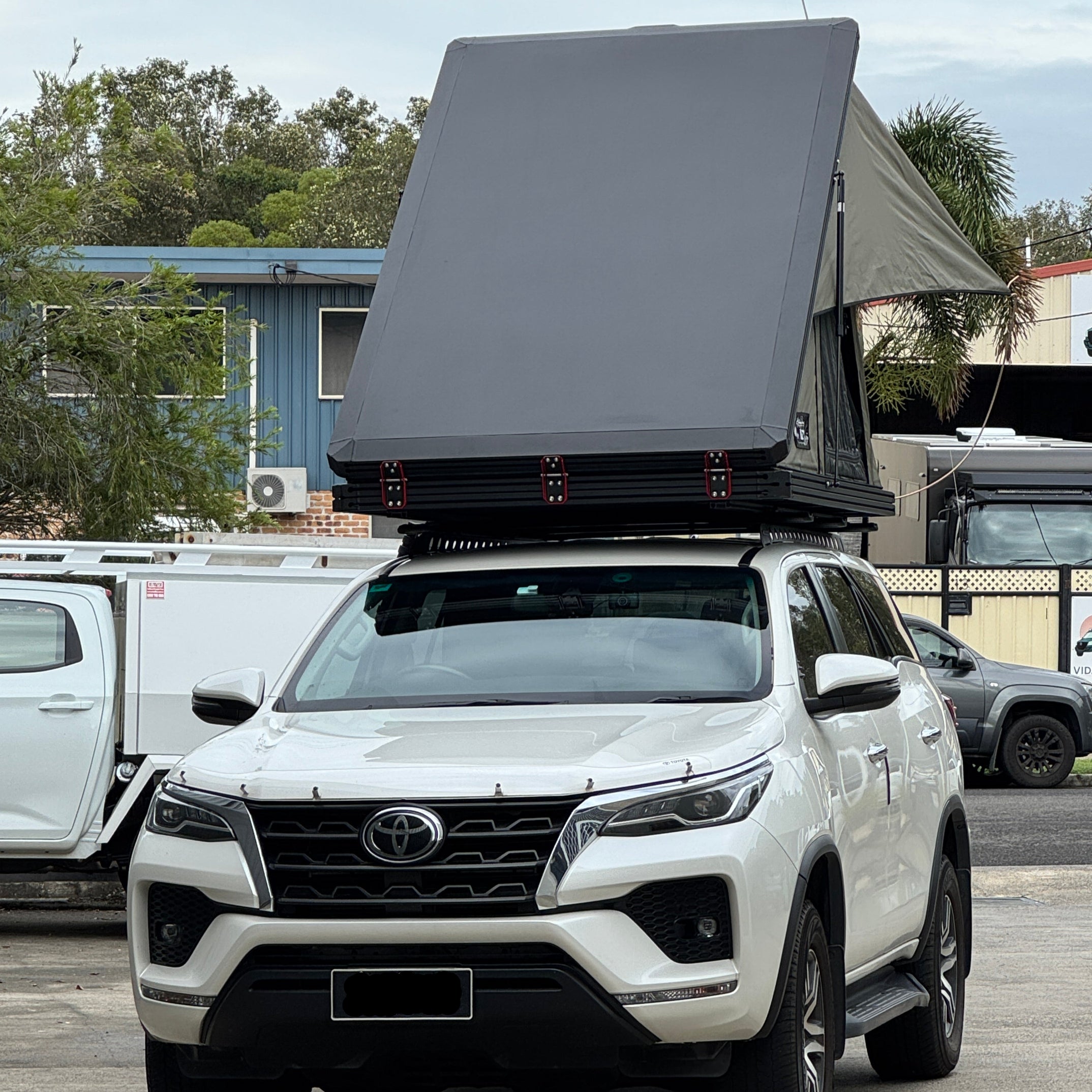

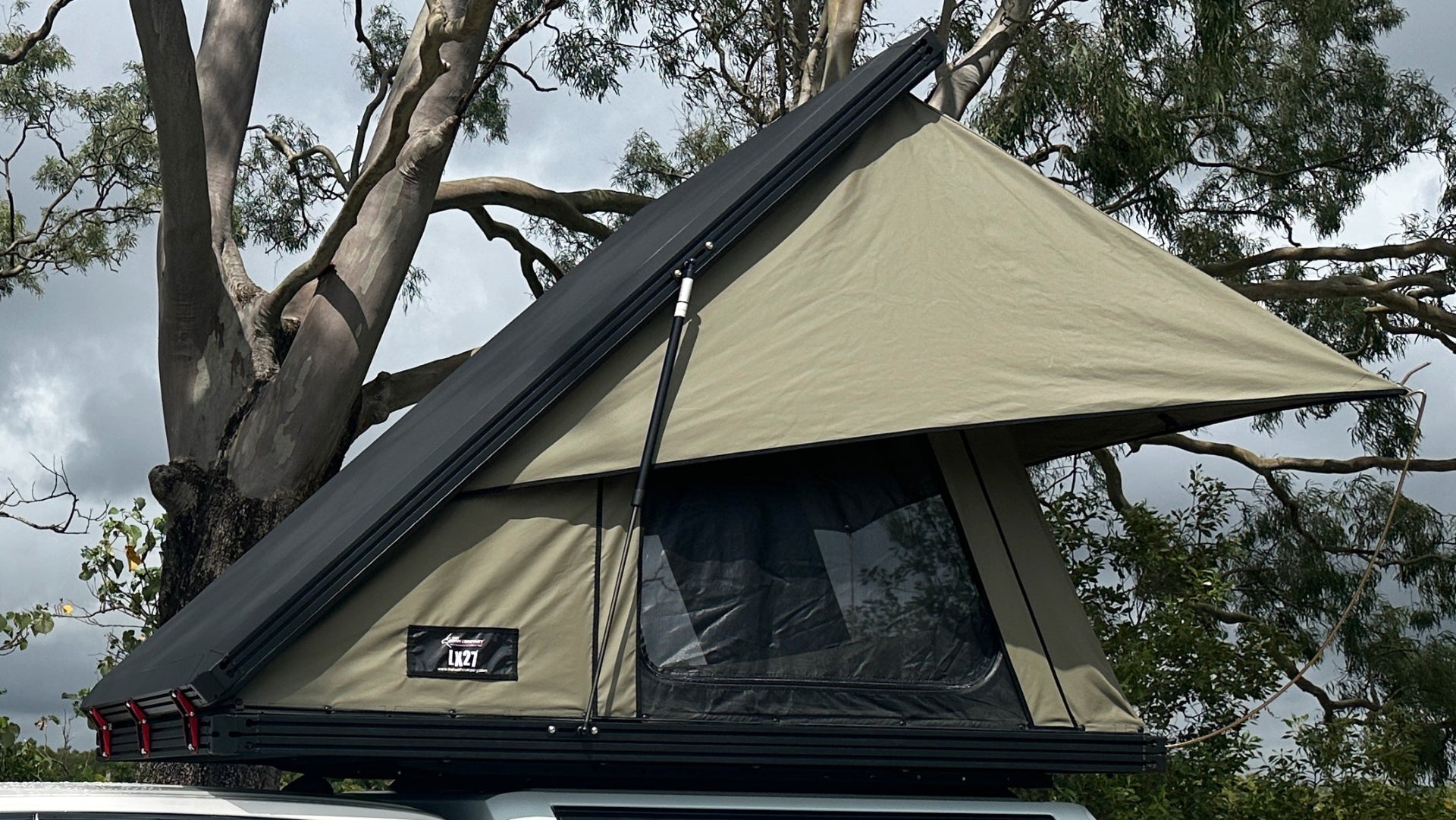

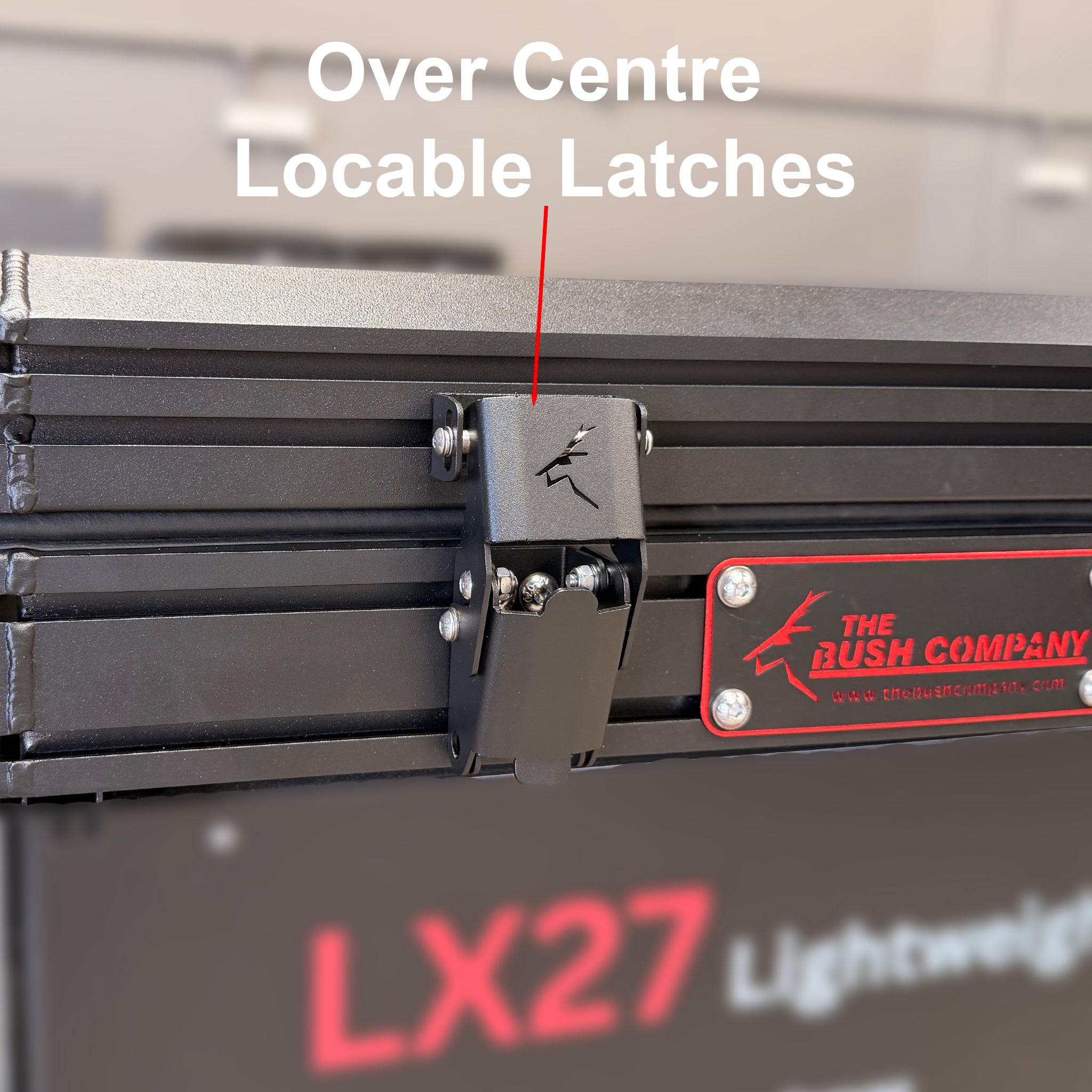

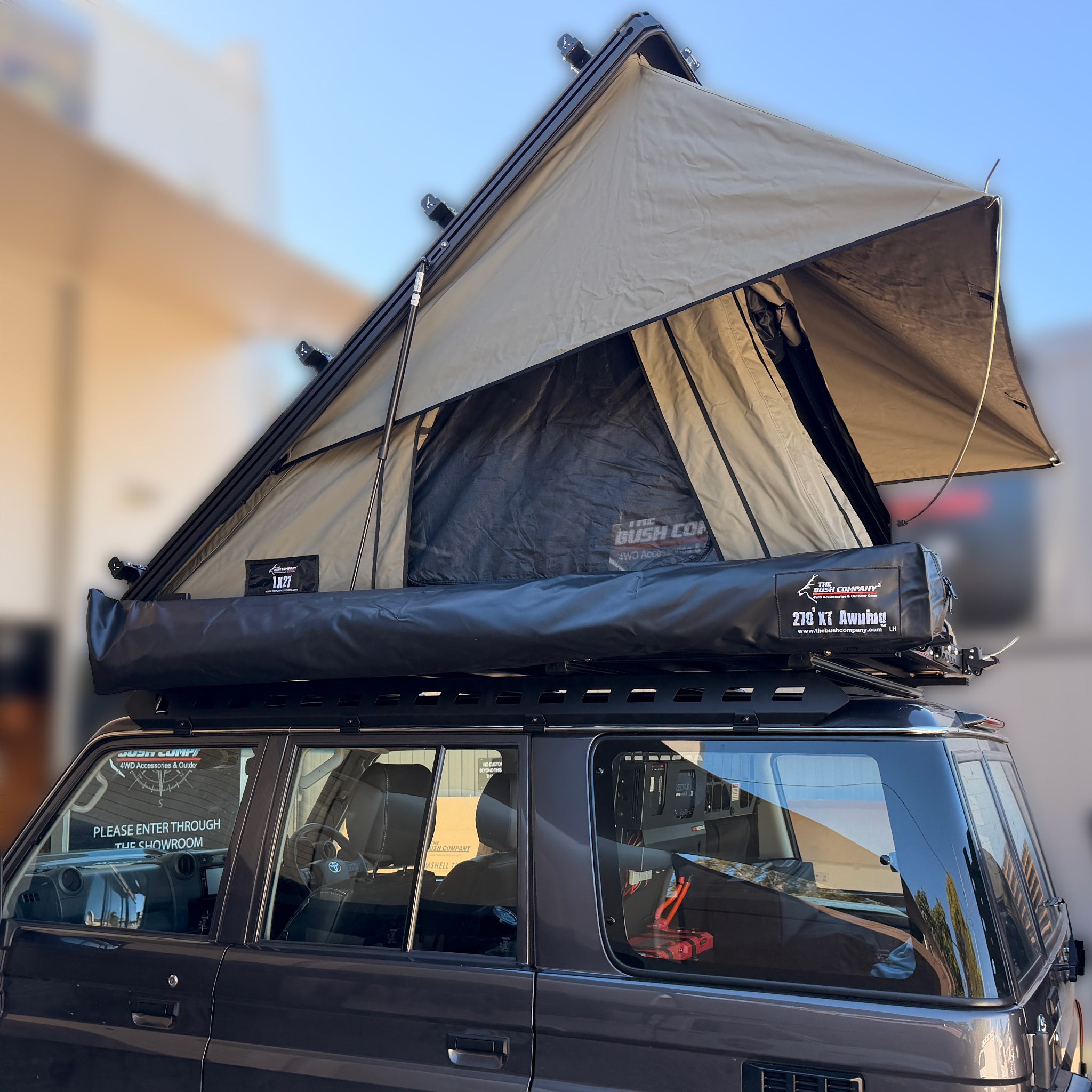

When seconds count, the LX27 Gen 2 delivers. The gas-strut-assisted clamshell mechanism deploys your tent in under 60 seconds. Built for the Australian outback, the construction ensures superior protection and longevity:

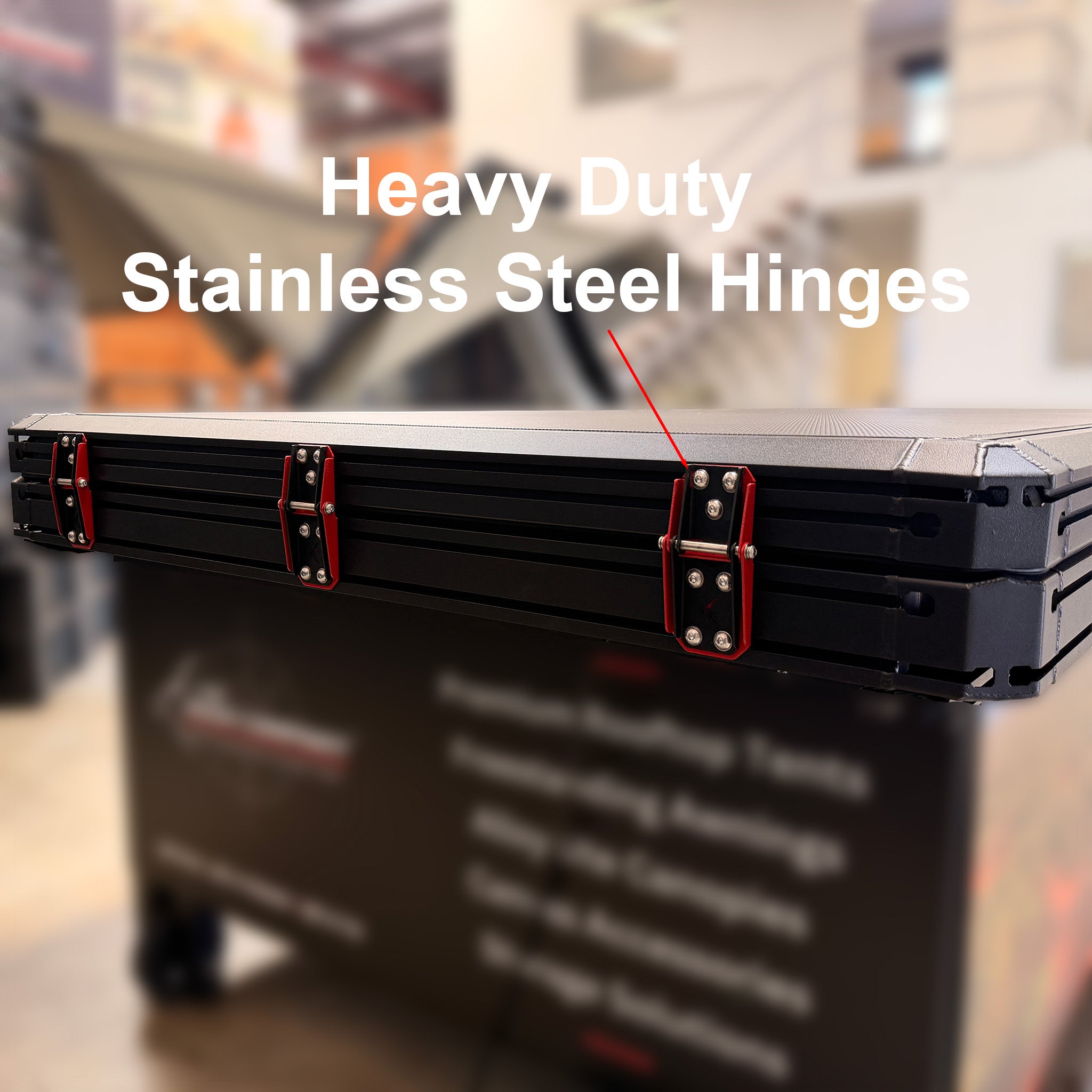

- Robust Structure: Features a seam-welded B-Tech™ extruded aluminium frame with fully welded corners.
- Premium Canvas: Utilises South African-made, dual-layer 260gsm acrylic-infused ripstop canvas to resist mould, mildew, UV damage, and dust.
- Weatherproofing: Secured with automotive-grade seals and a heavy-duty rainfly for maximum protection.
Comfort You Can Count On.
Enjoy superior rest on the premium 70mm dual-layer foam mattress, which combines a 30mm memory foam top layer with a 40mm super high-density foam base, all sitting on a marine carpet underlay to combat condensation.

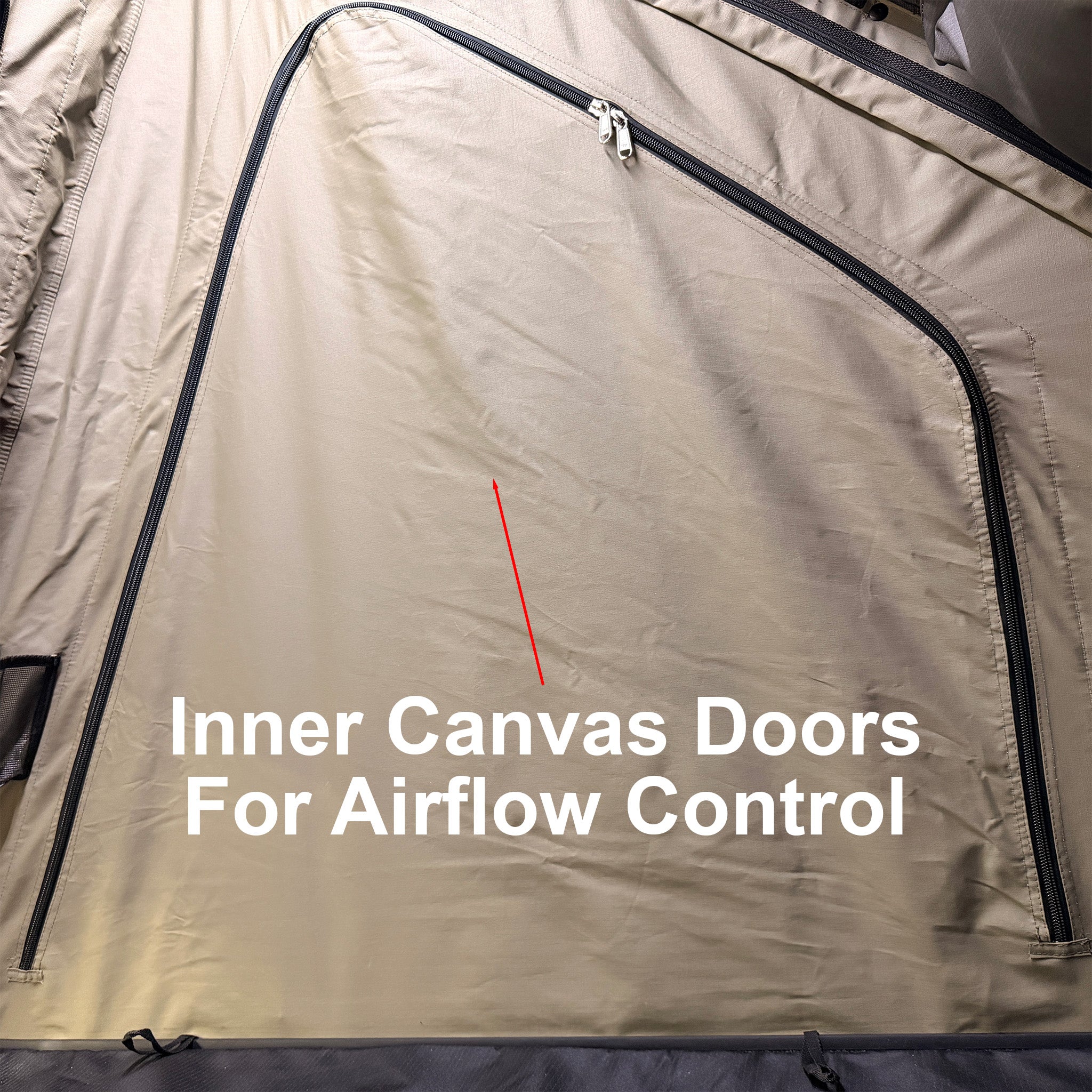

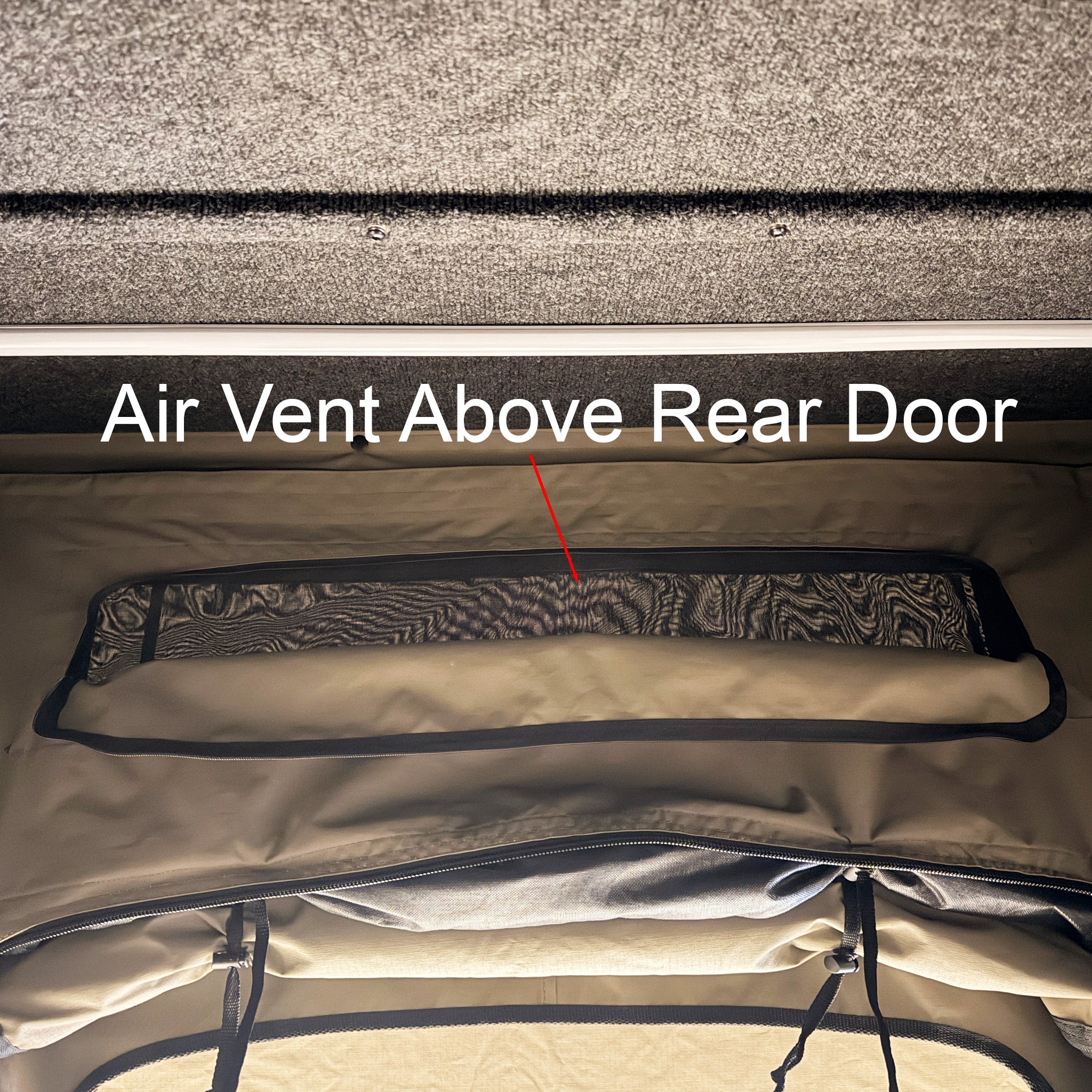

- Ventilation: Excellent airflow via a mesh-covered rear airflow vent, a dedicated roof vent, and three large premium midge-mesh covered canvas doors/windows (rear and side entry).

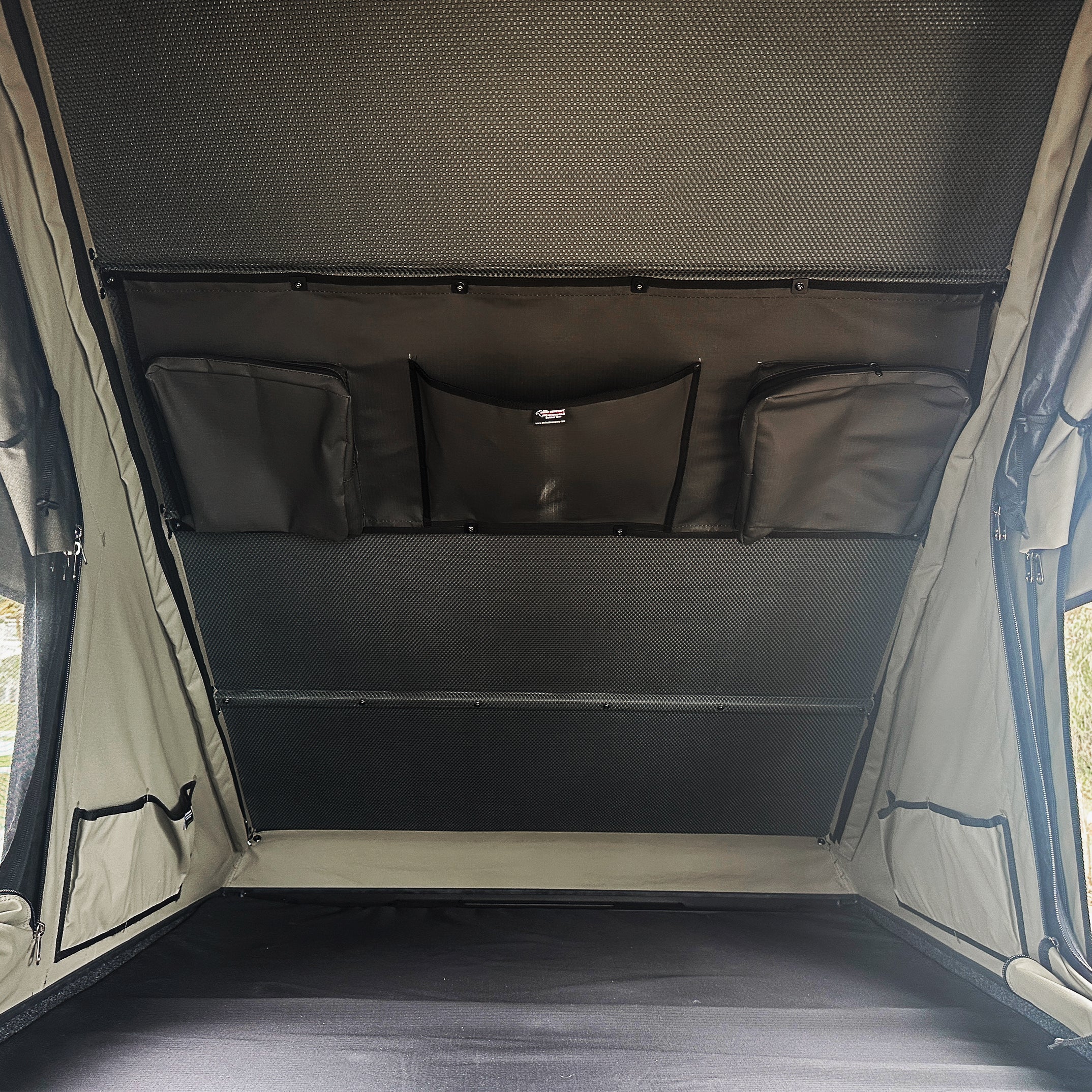

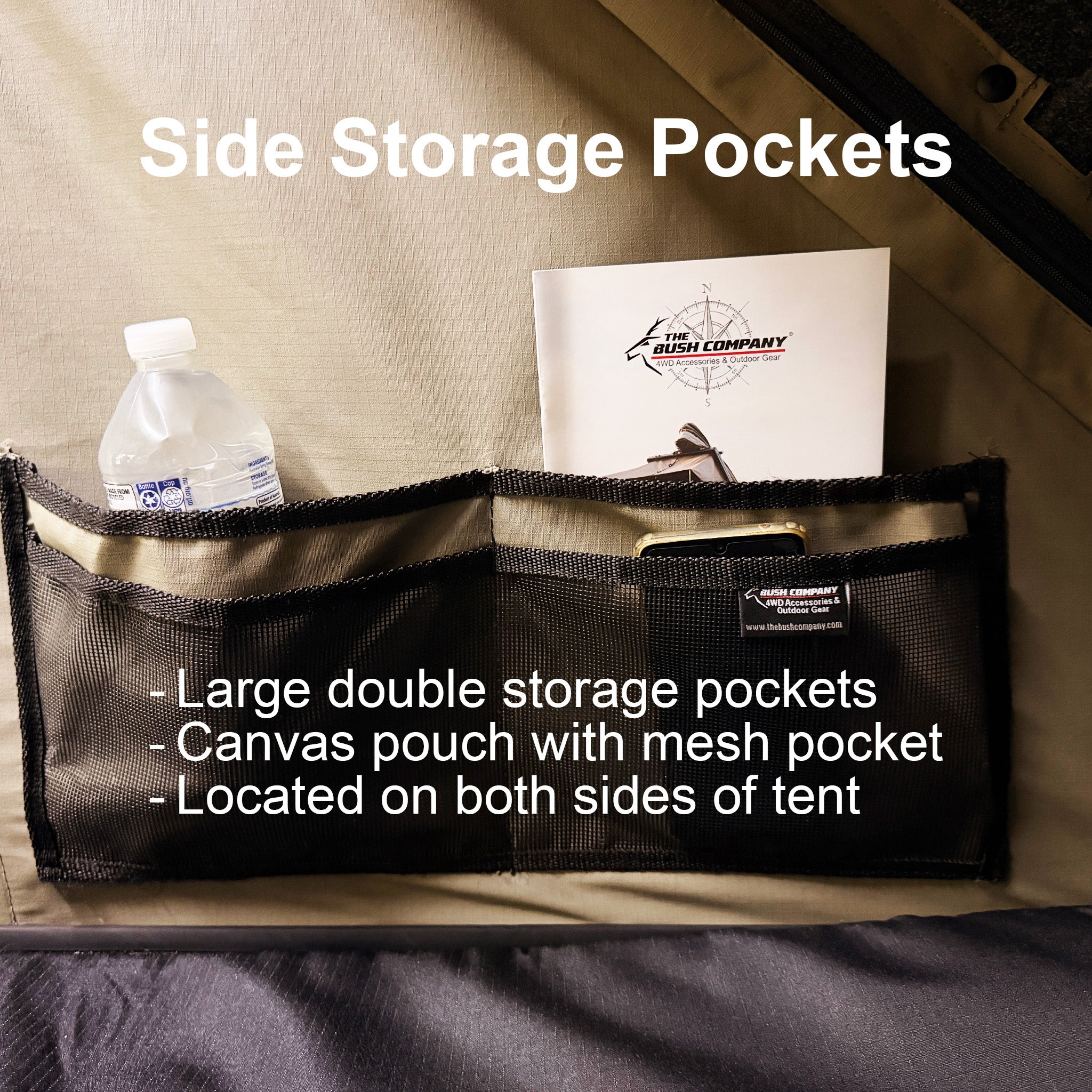

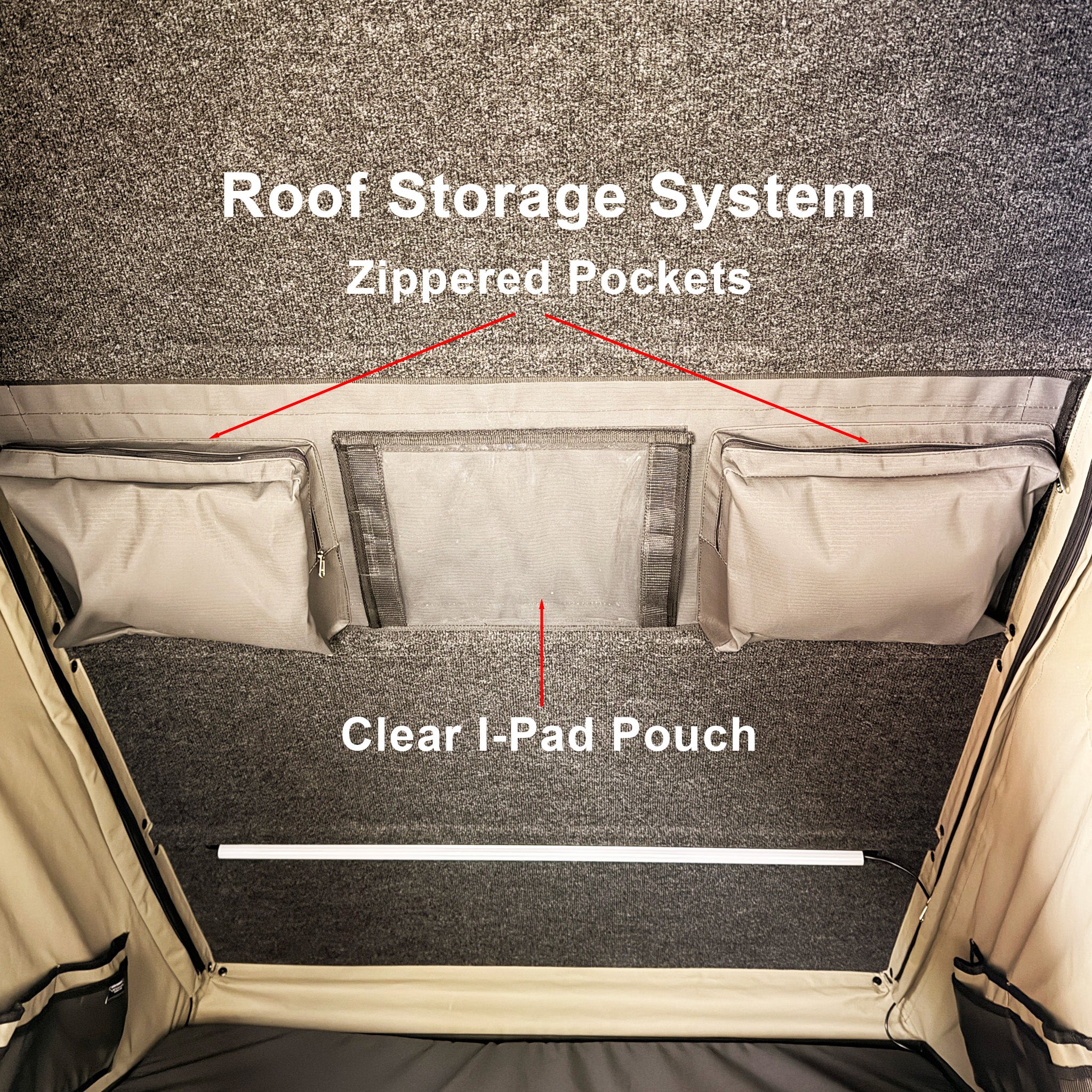

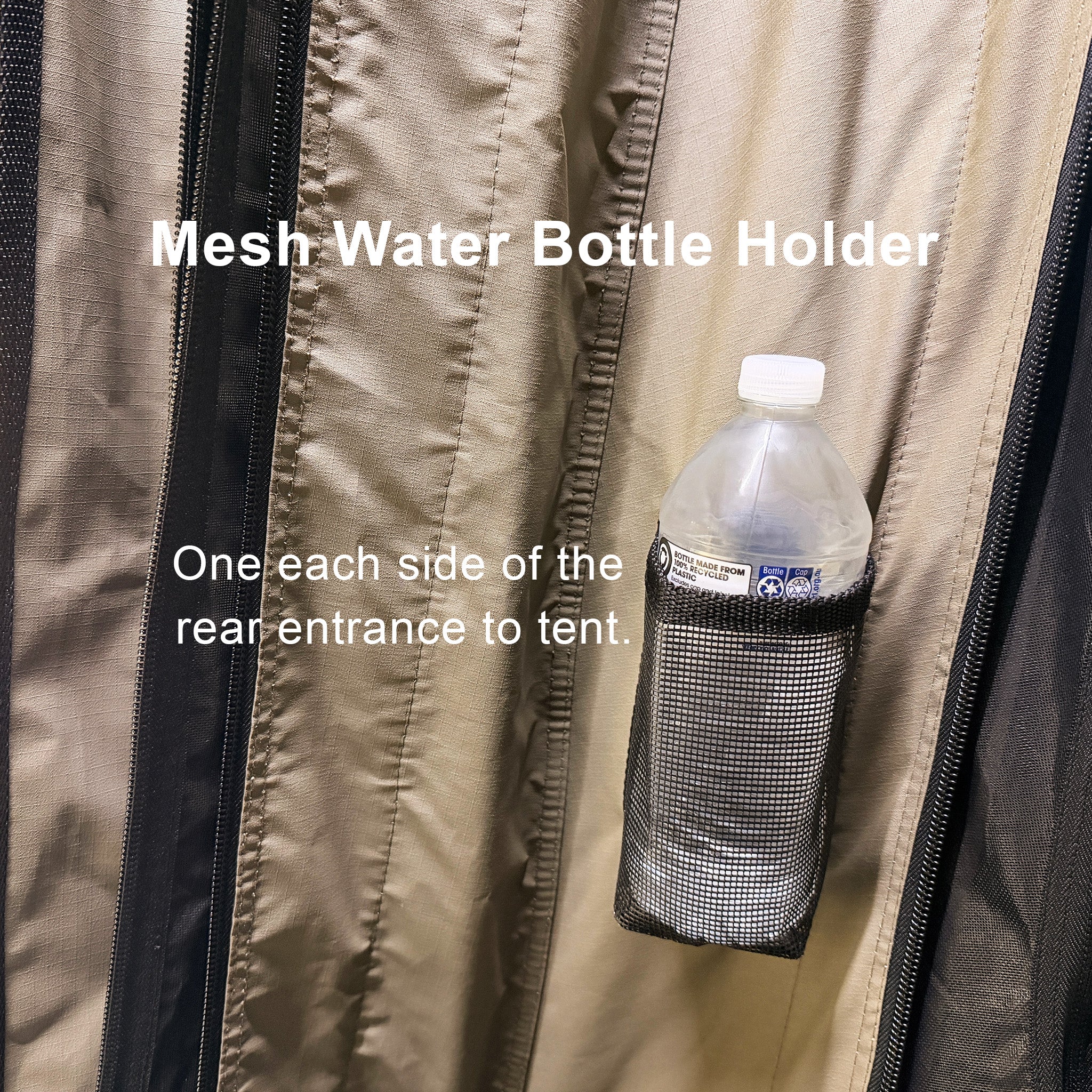

- Storage: Large side pouches, water bottle holders, and upgraded internal roof pockets featuring a clear-panel tablet holder for iPads and devices.
Integrated Power for Off-Grid Living
Stay charged and illuminated in the bush with the LX27 Gen 2’s upgraded, fully integrated 12V electrical system.

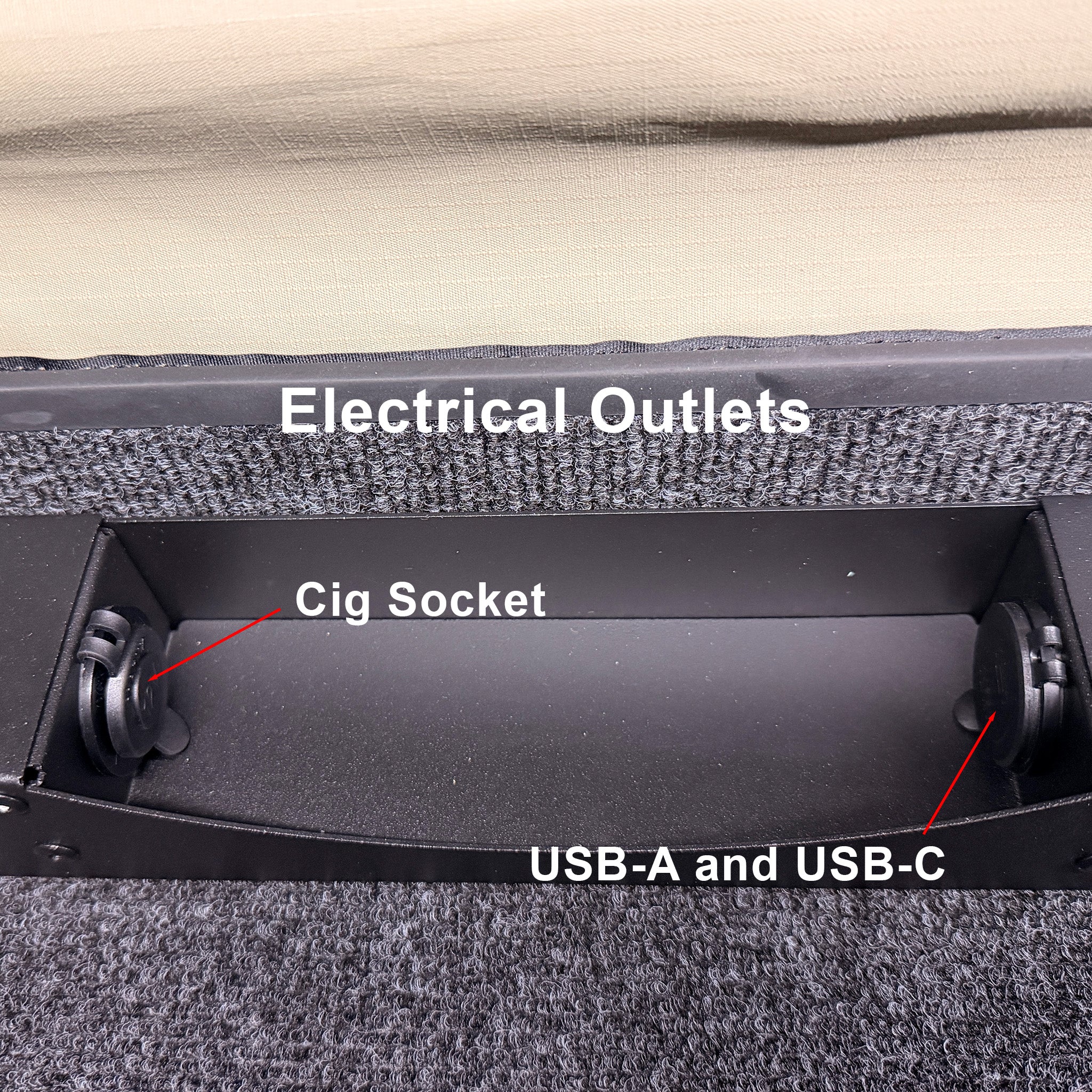

- Internal Power: Includes dual USB-A ports, dual USB-C ports, and two 12V sockets discretely mounted for modern device charging.

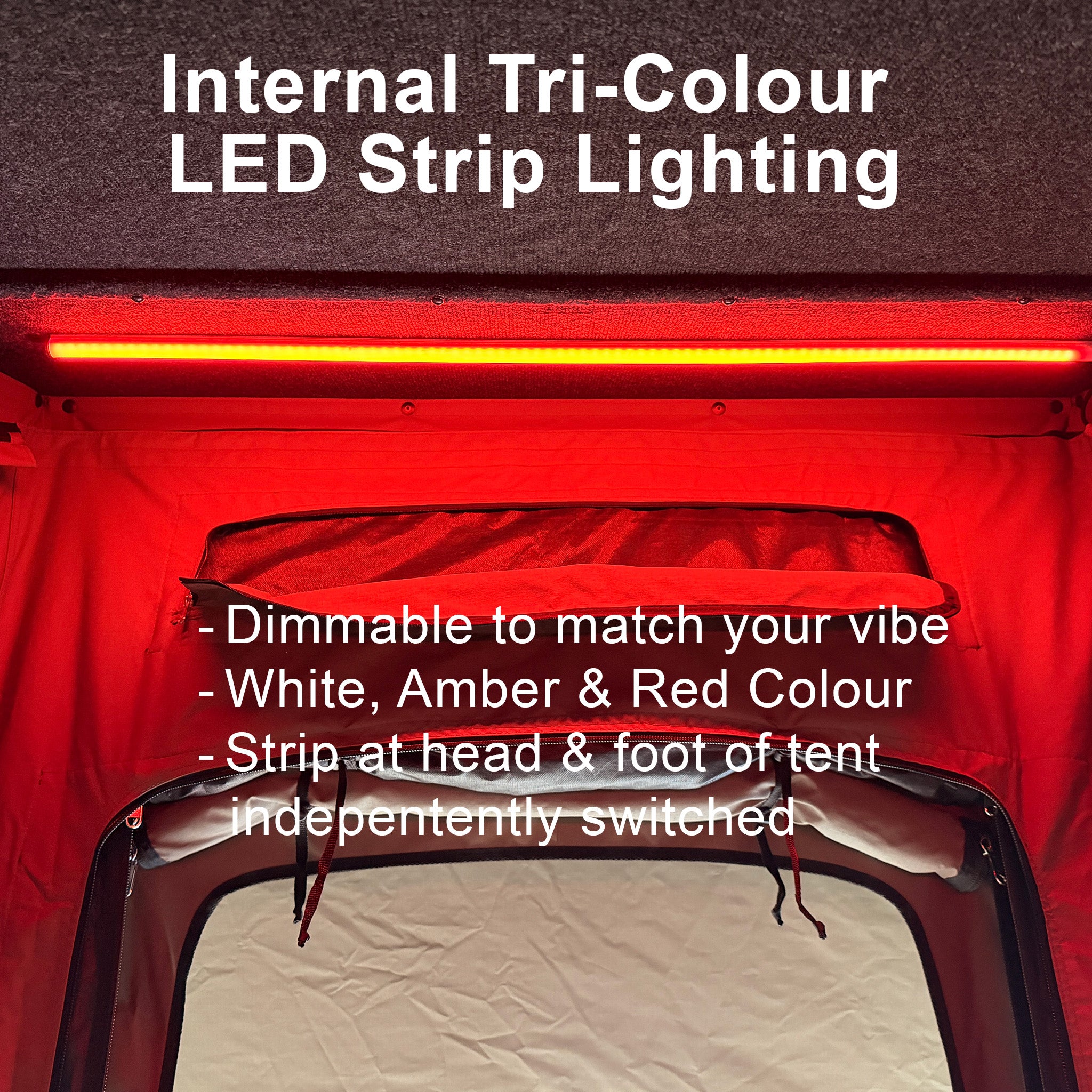

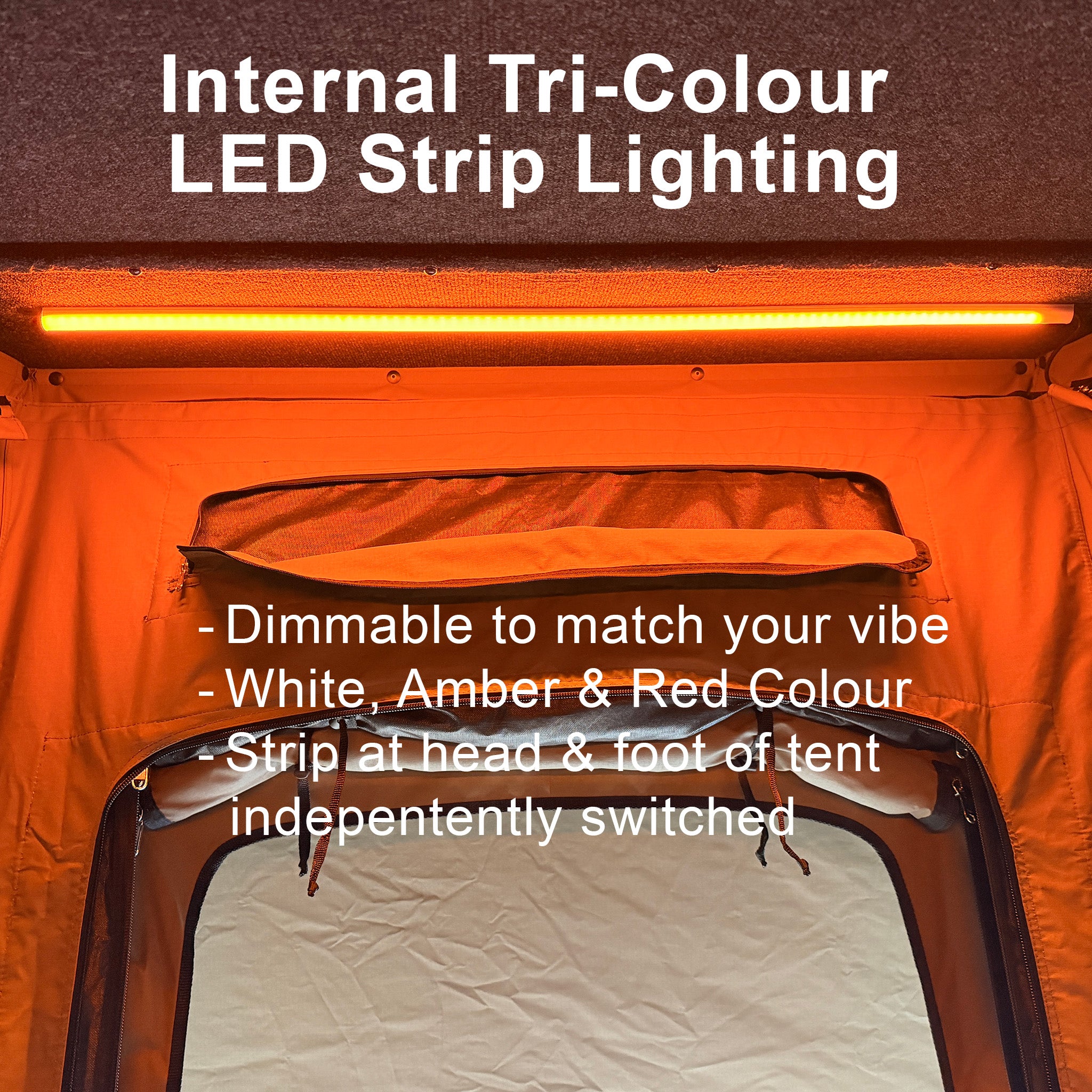

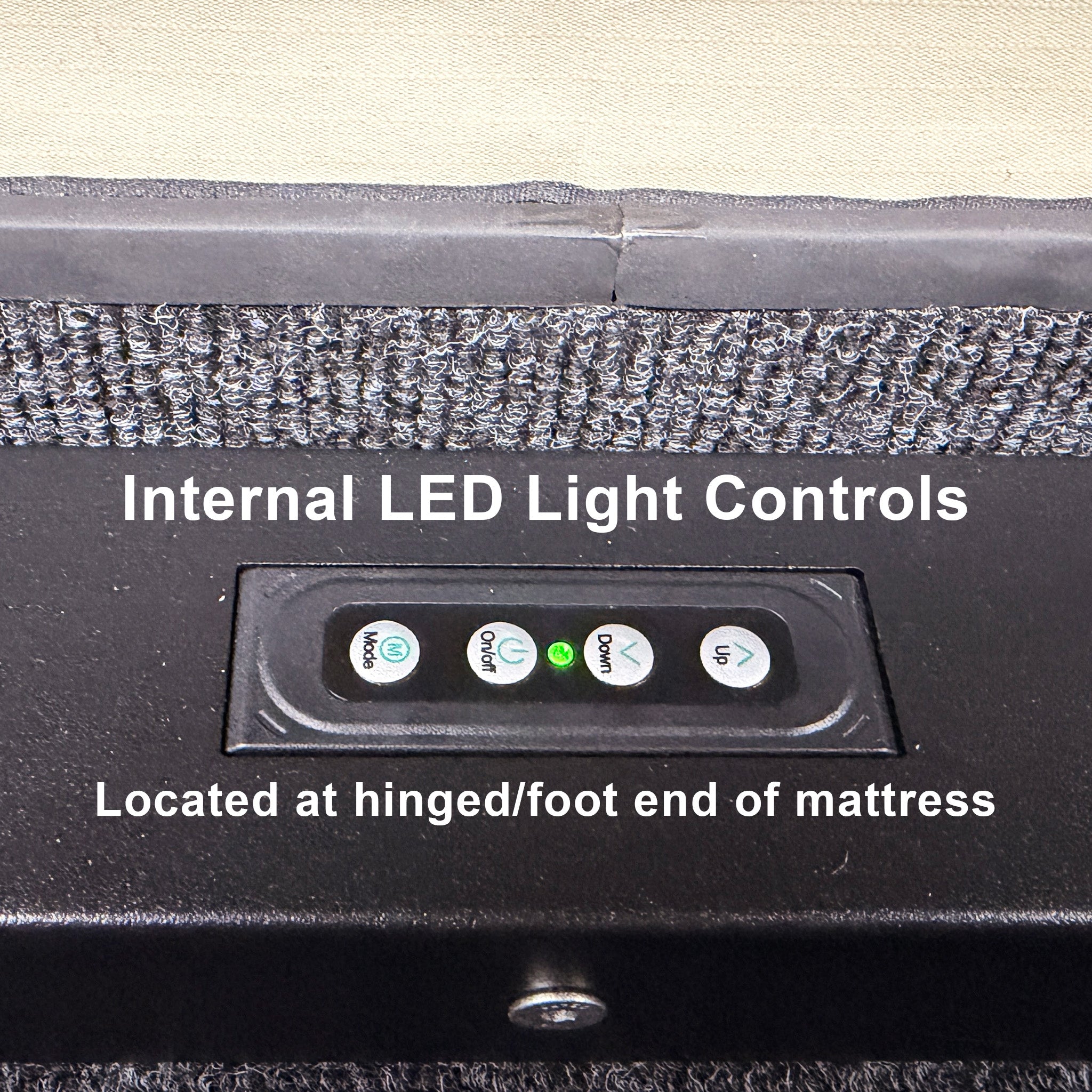

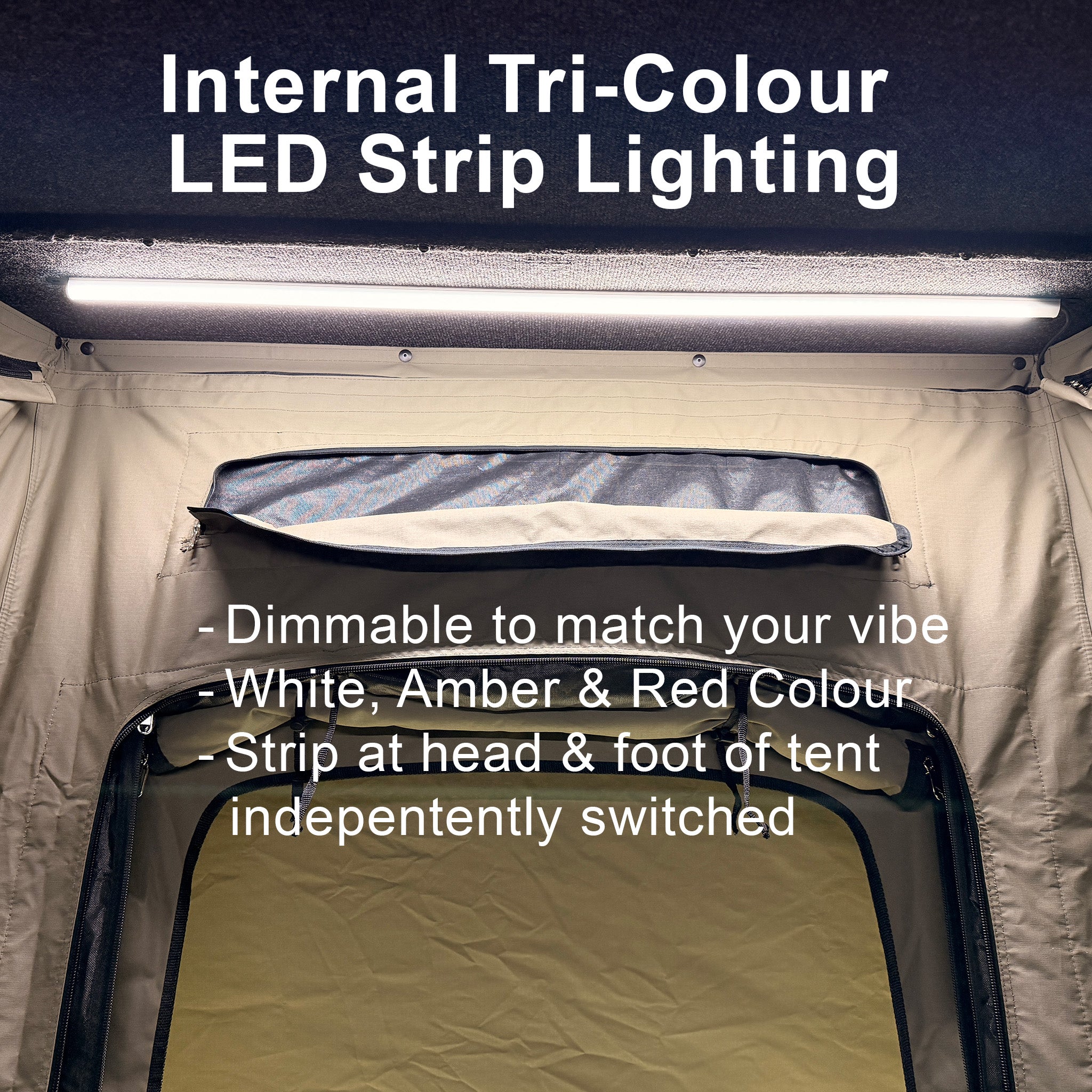

- Lighting: Pre-wired with dual diffused Tri-Colour (White/Yellow/Red) dimmable LED light strips at both the head and foot of the tent, controlled via a main panel and independent entry switches.

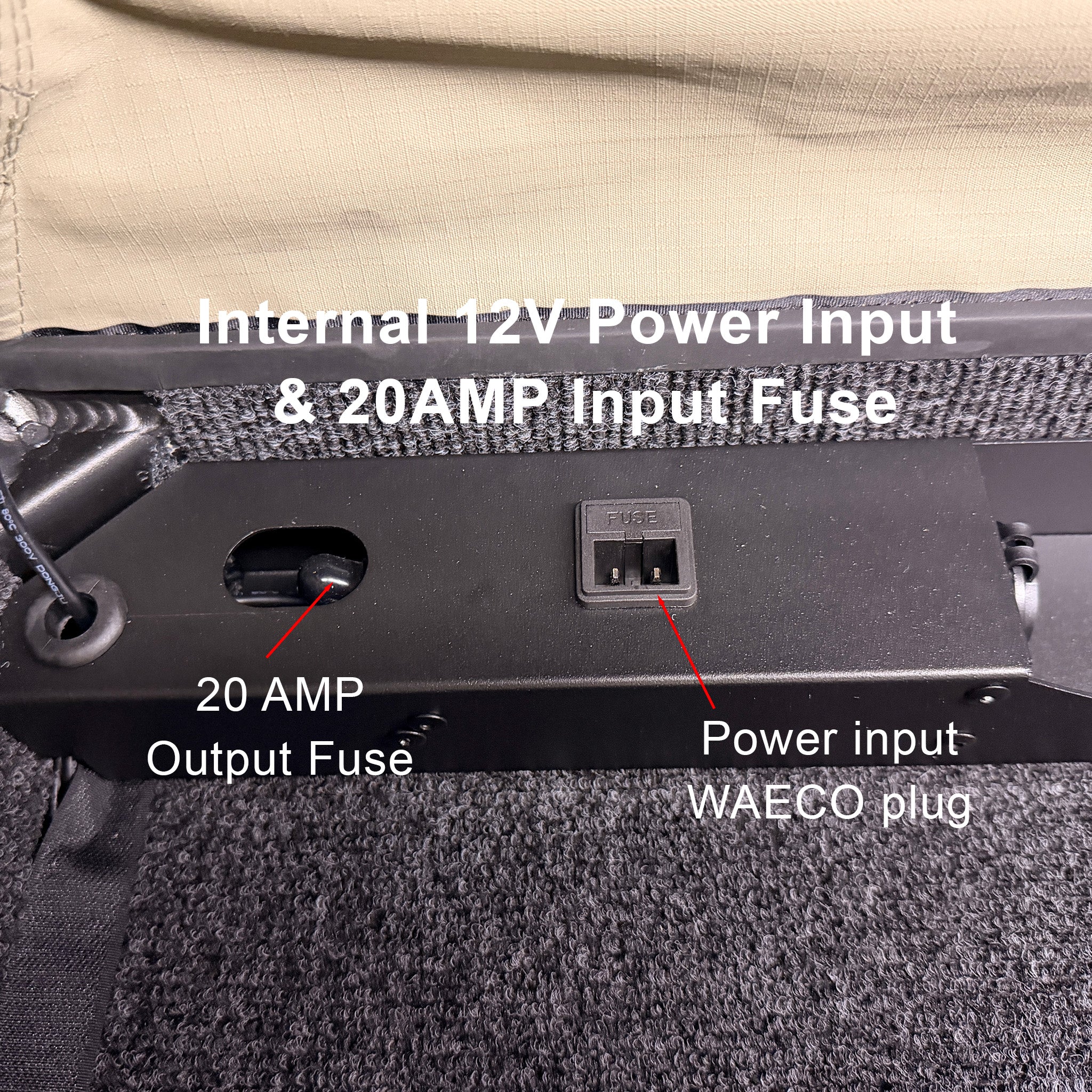

- Versatile Connection: Power the system easily via an external 50A Anderson plug connection on the tent's base, or use the unique internal 20A WAECO power input socket.
Mount More. Do More.
The LX27 Gen 2 provides the versatility of a full touring setup. Reinforced support allows for a 100kg closed roof load and a 35kg static load when open.

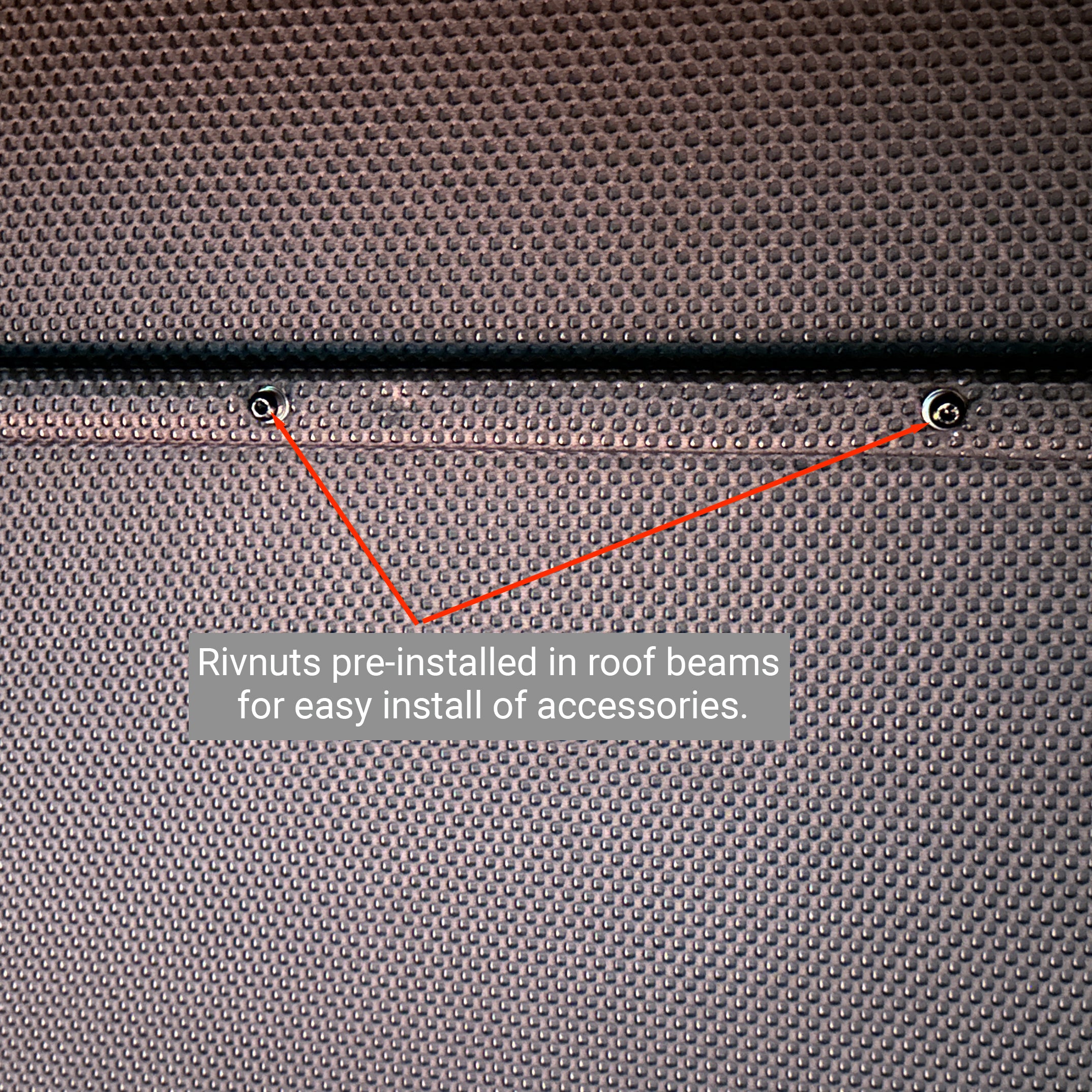

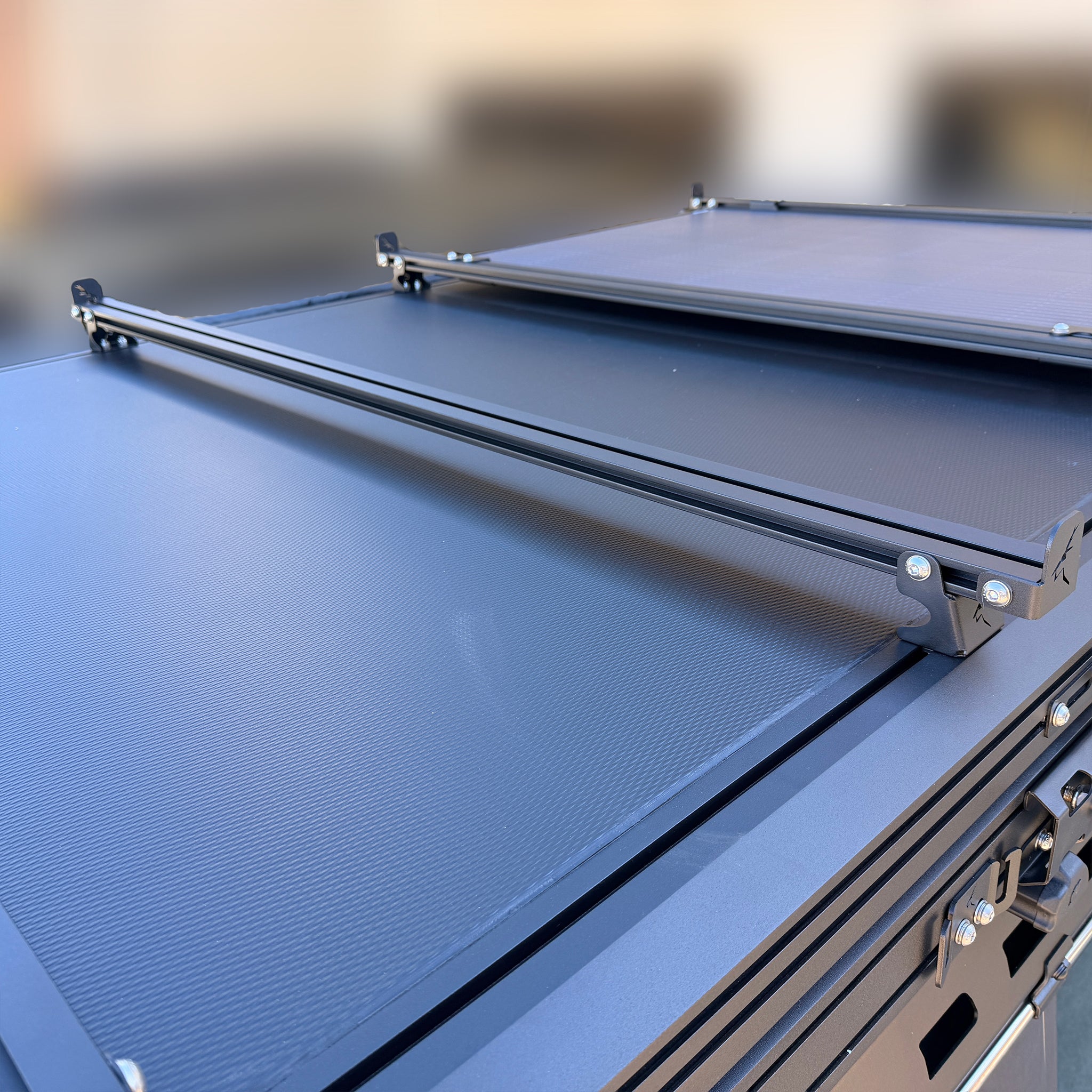

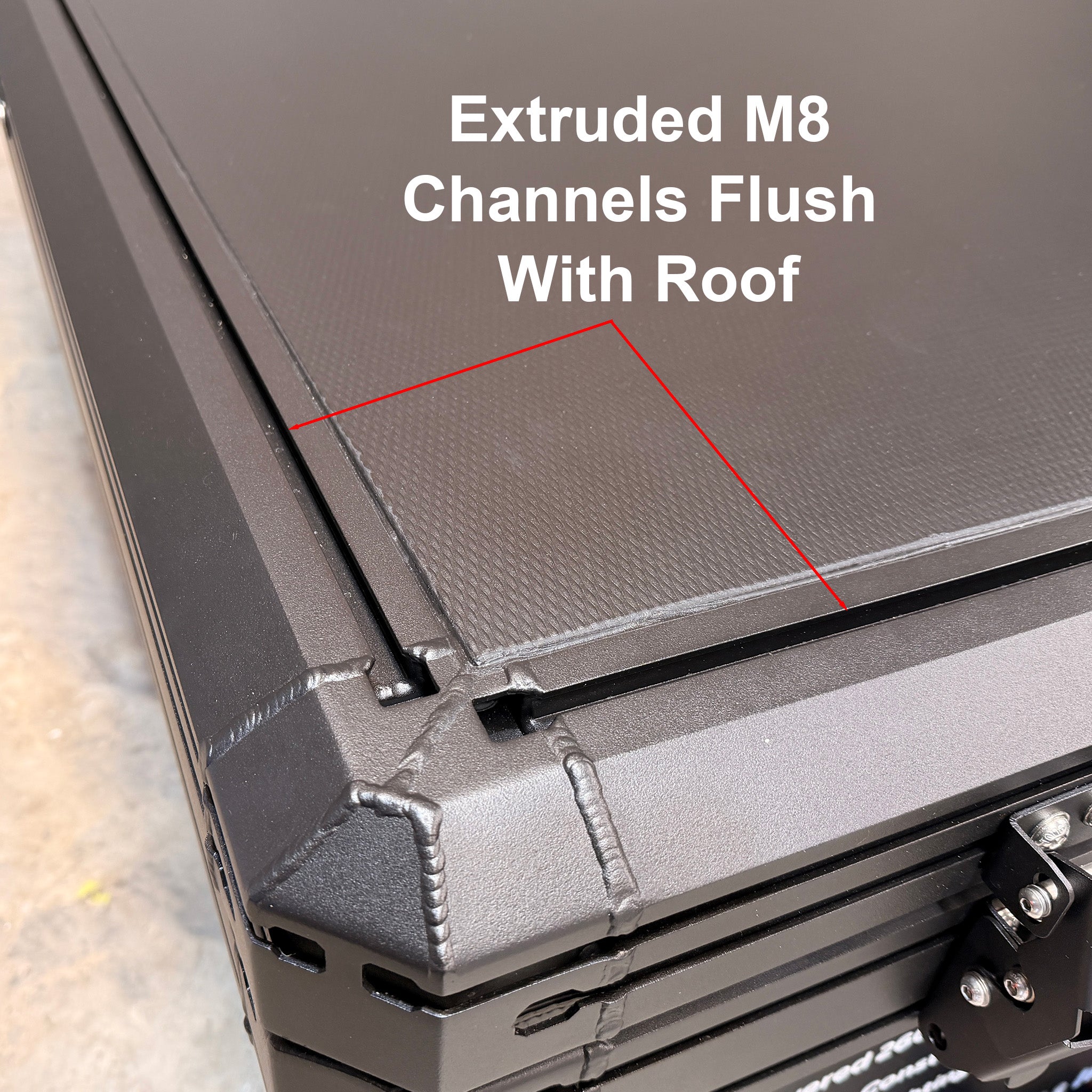

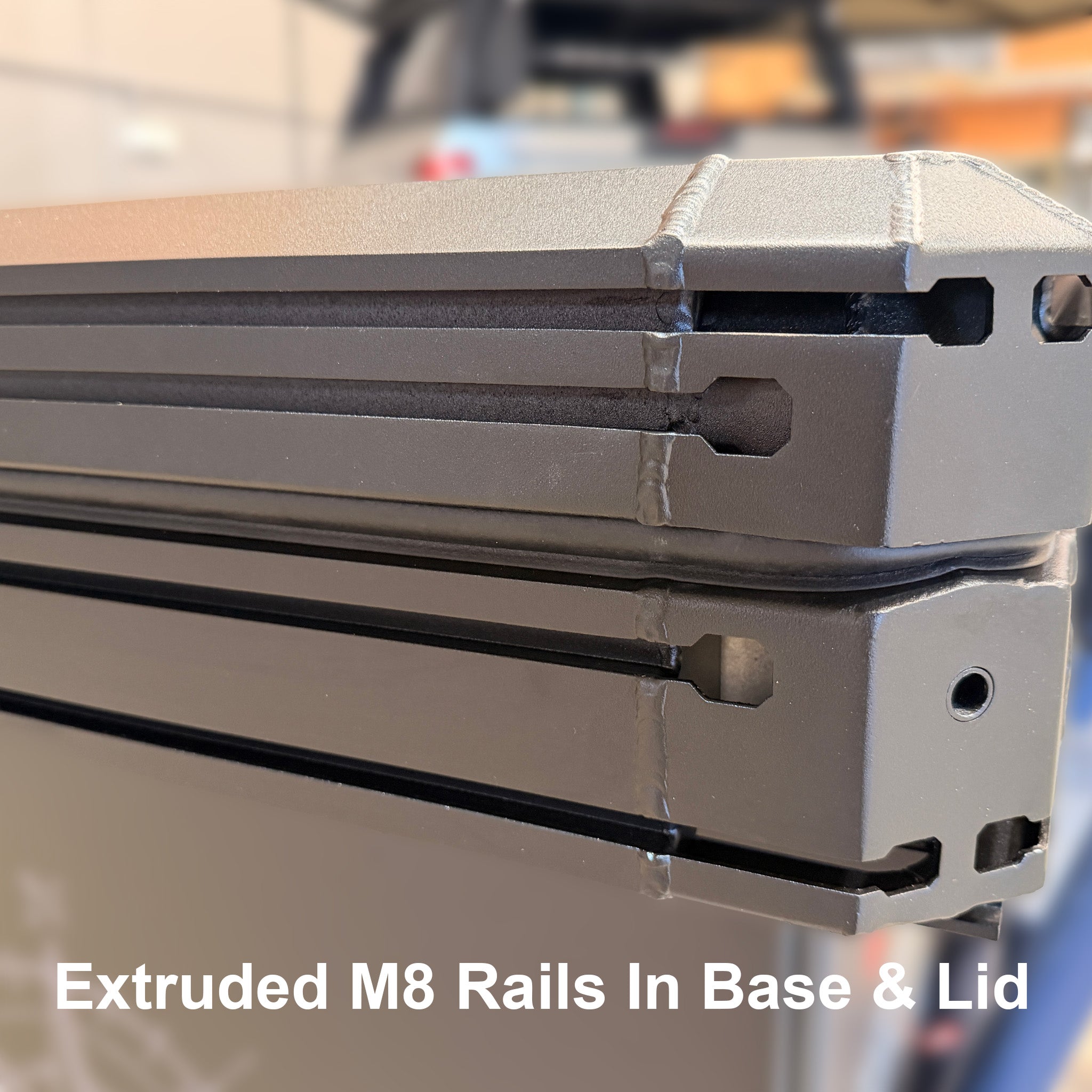

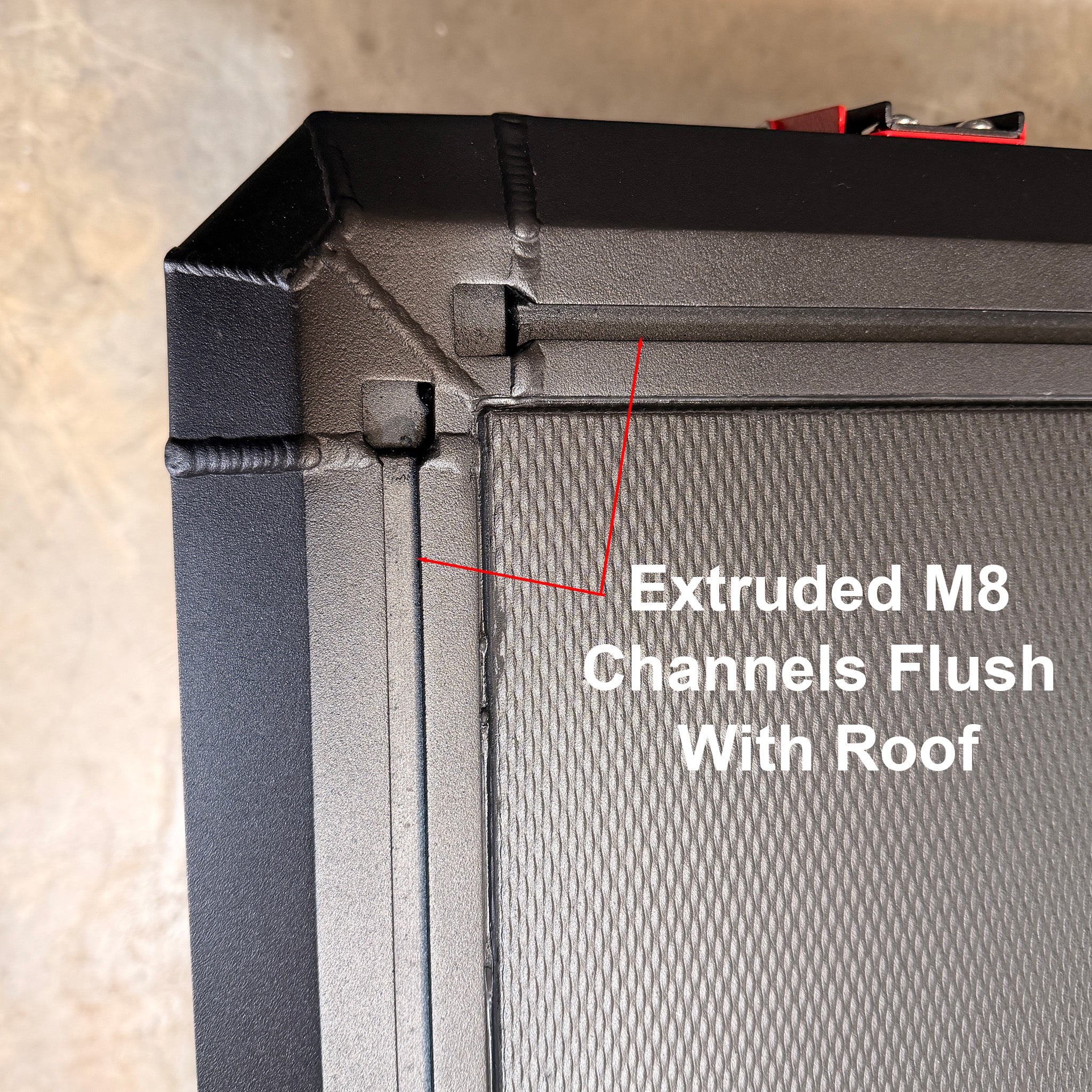

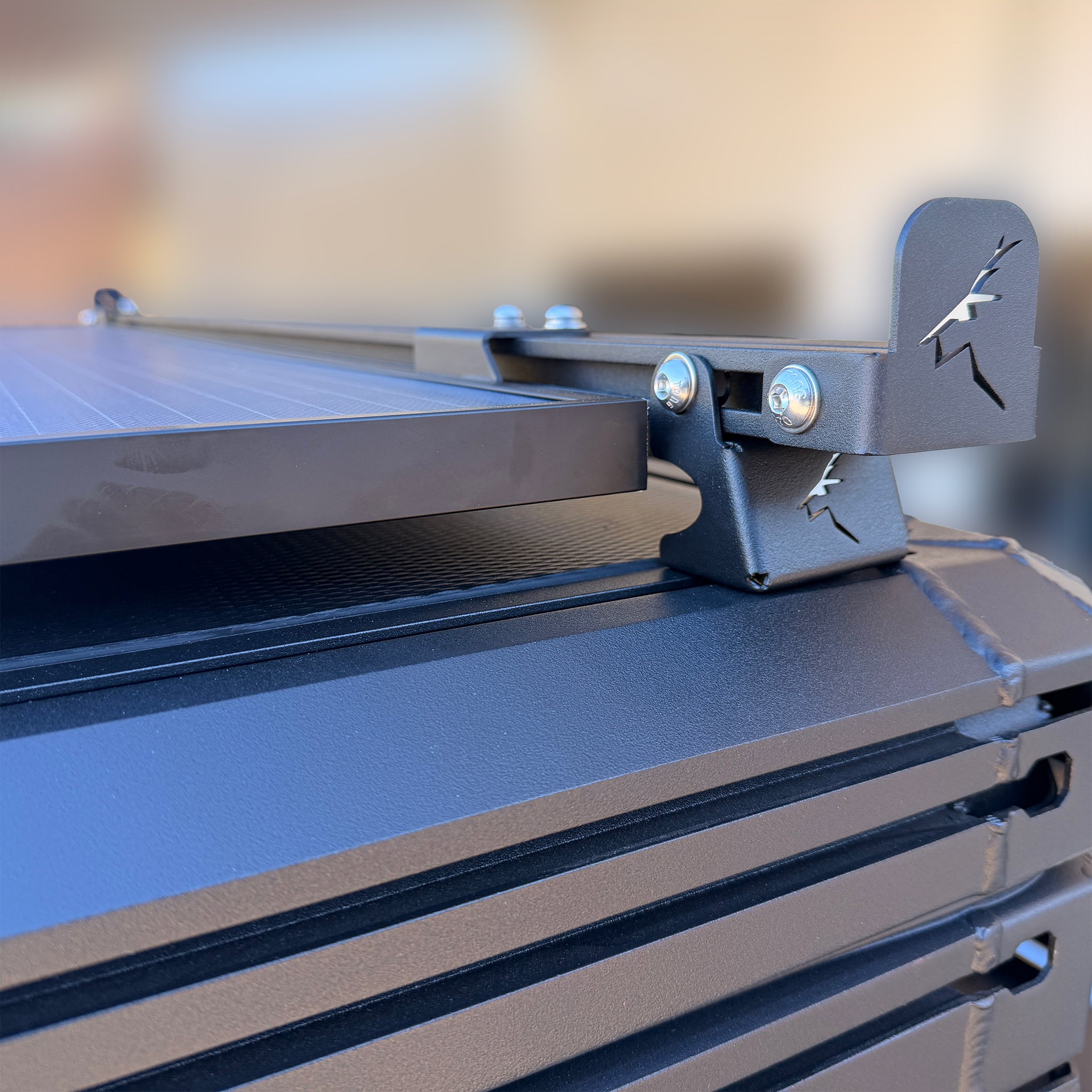

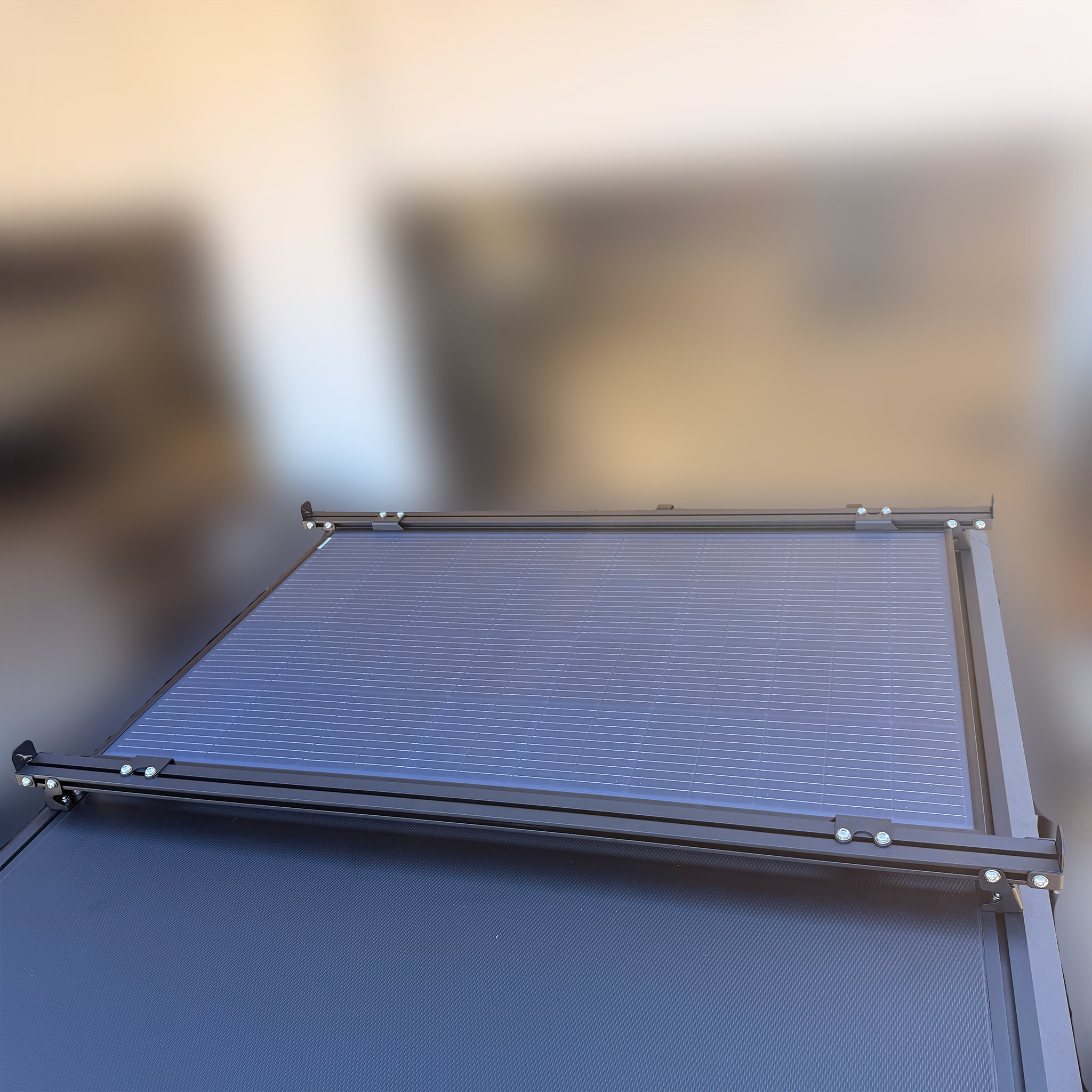

- Modular Mounting: Integrated extruded Ezi-Slot channels in the roof and sides allow for easy, drill-free mounting of solar panels, recovery boards, or load bars.
Specifications
- External Dimensions: 2.25m (L) x 1.39m (W) x 0.176m (H)
- Mattress Size: 2.03m (L) x 1.29m (W) x 70mm (H)
- Weight: 81Kg (excluding ladder and optional longitudinal rails)
- Canvas: 260gsm dual-layer poly-cotton ripstop
- Power Ports: Dual USB-A, Dual USB-C, Two 12V sockets
- Power Input: External Anderson Plug, internal 20Amp WAECO socket
- Warranty: 2-year manufacturer warranty
Why Choose the LX27 Gen 2?
Whether you're chasing horizons in the High Country or exploring coastal dunes, the LX27 Gen 2 delivers durability, comfort, and unmatched ease of use. It’s the lightweight, low-profile solution trusted by serious tourers and everyday explorers alike. Australian-designed. Overland-tested. Built for the bush.
Installation Service Available in Stapylton, QLD
Our team can professionally install this system to your vehicle for next-level Peace of Mind Touring. Get Off Grid offers professional, precision installation at our workshop in Stapylton, QLD. Ensure your setup is perfectly fitted, torqued, and adventure-ready right from the start. Contact us today to book your installation slot.
Specifications

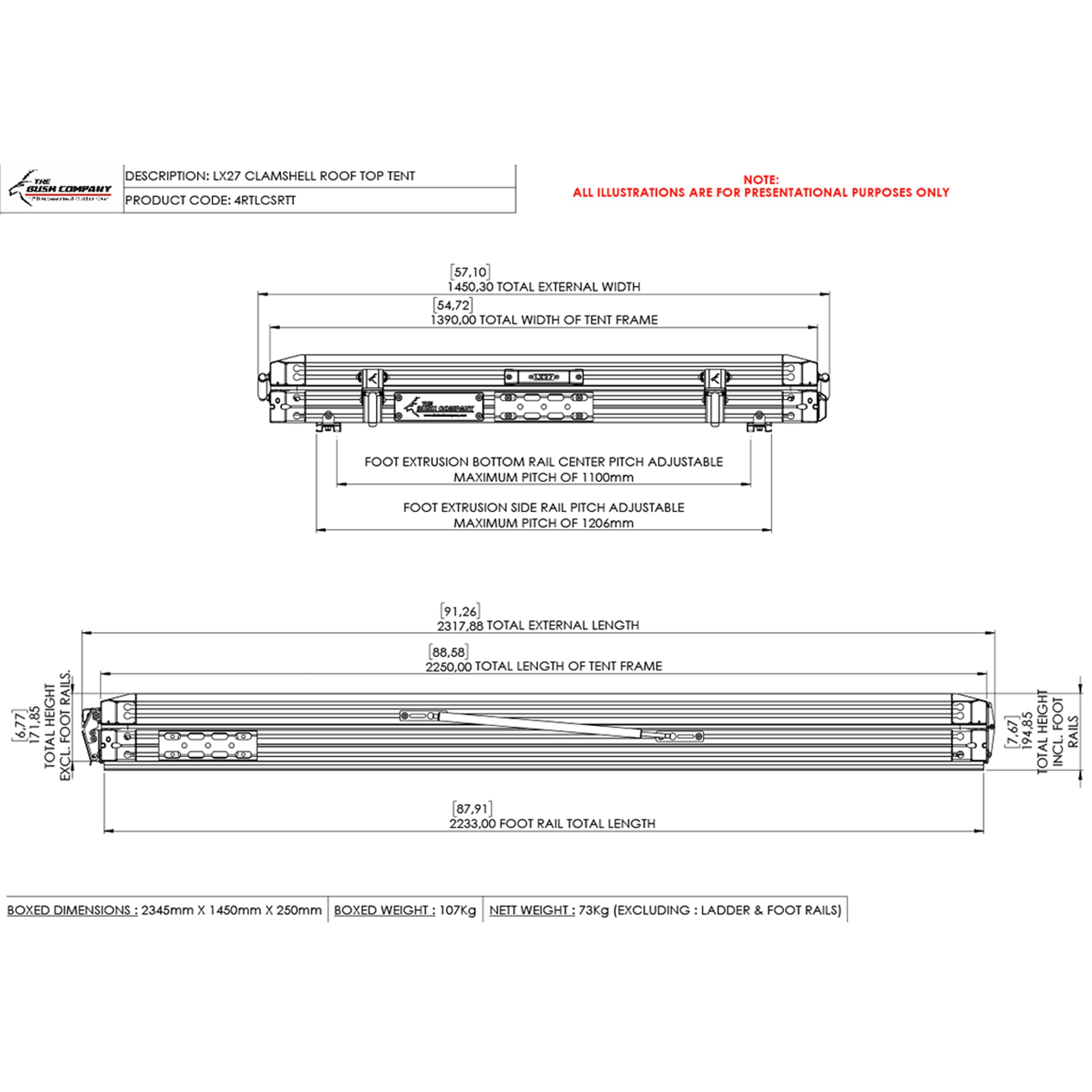

LX27 Gen 2 Technical Specifications
- External Length: 2.25m (2.32m including hinges & handles).
- External Width: 1.39m (1.45m including gas struts).
- Closed Height: A slim 176mm (196mm including optional base extrusions).
- Internal Headroom (Open): 1690mm.
- Weight: Approximately 81kg (excluding ladder and optional mounting rails).
- Mattress: 70mm premium dual-layer foam system, comprising a unique combination of:30mm Memory foam top layer40mm High-density foam baseIncludes a protective canvas cover and full marine carpet underlay.
- Canvas: Dual-layered 260g (+/- 10%) polyester ripstop, acrylic-infused, and mould/mildew resistant canvas on the body of the tent.

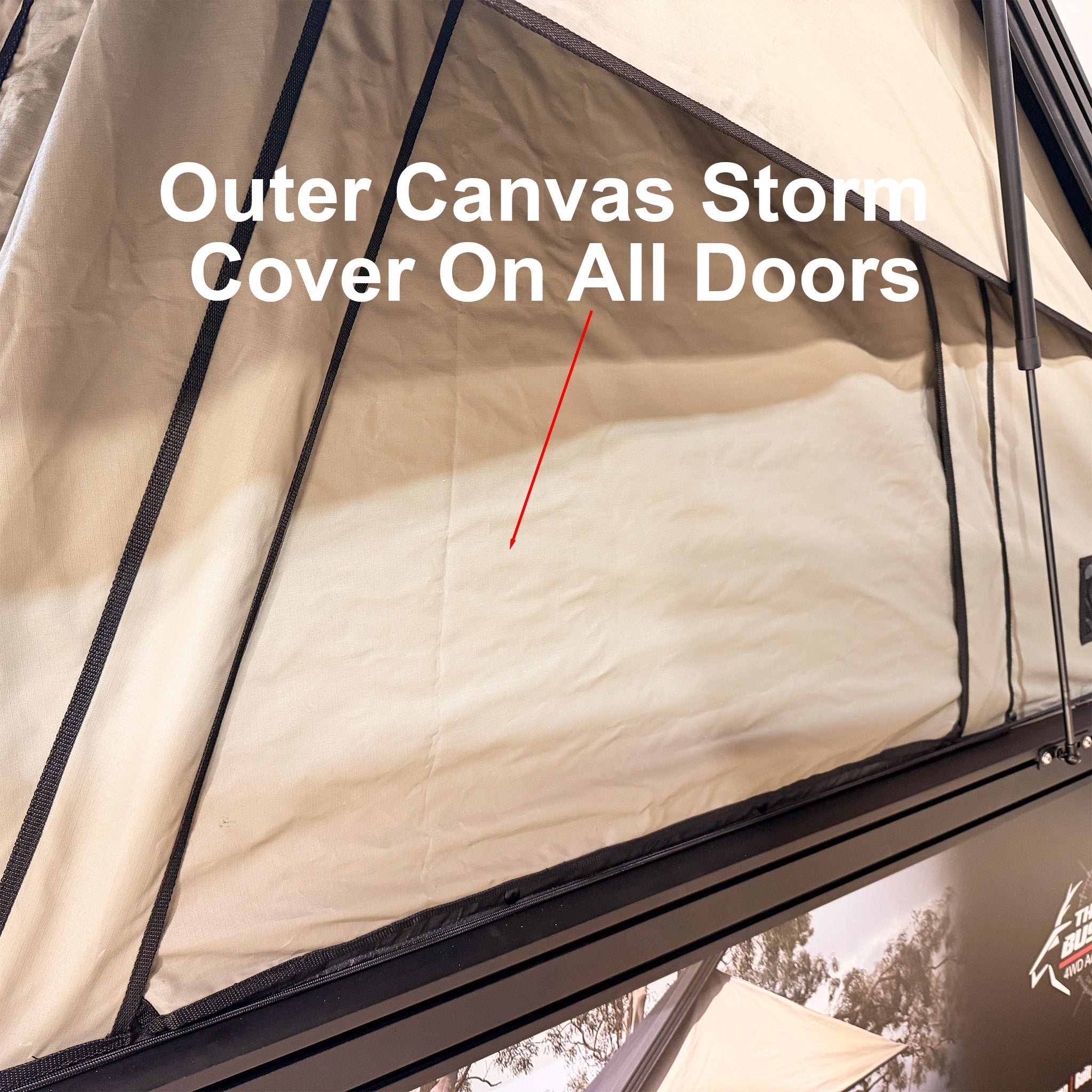

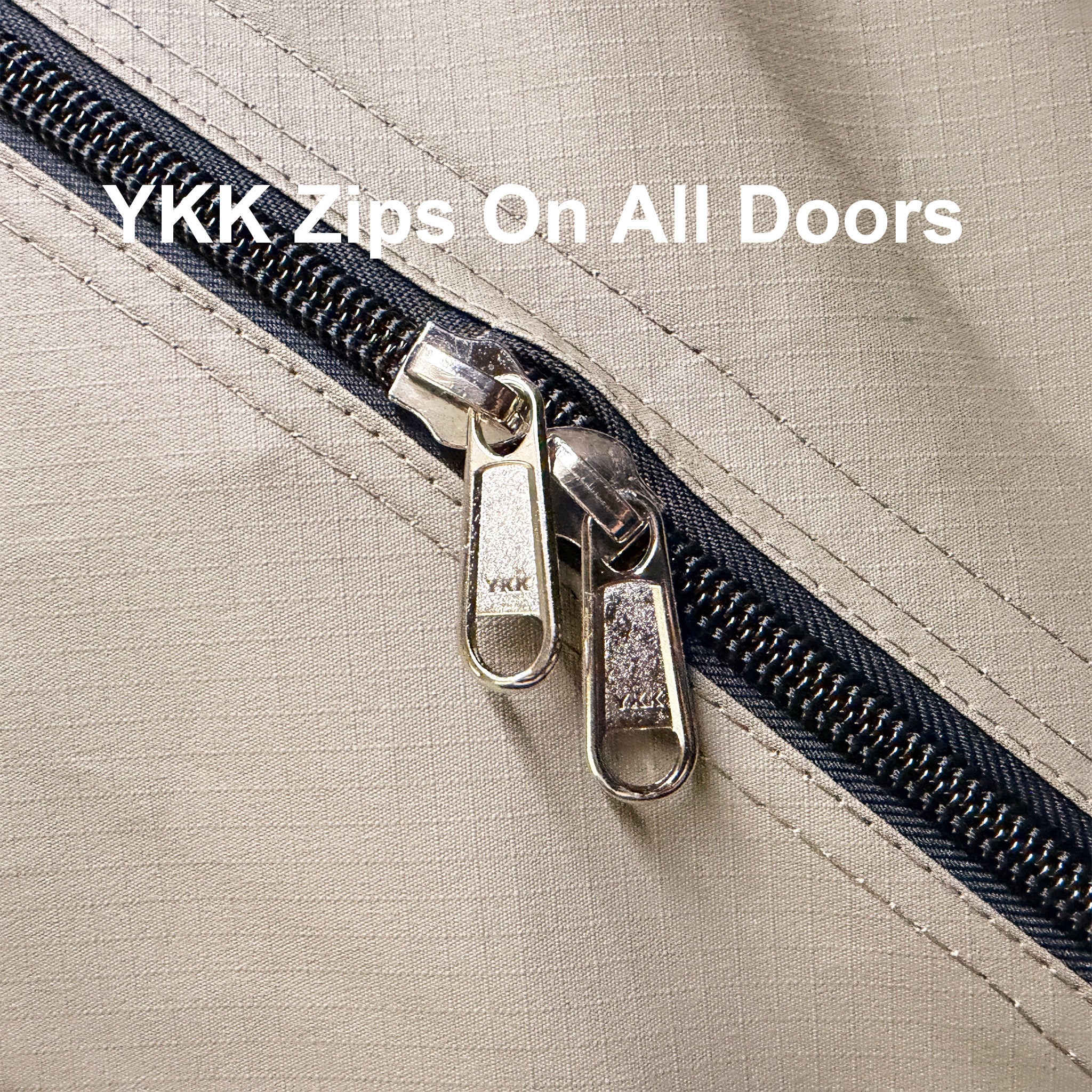

- Doors & Windows: Large entry points/windows at the rear and sides of the tent, featuring YKK zippers and high-quality midge mesh on all doors.
- Roof Load Capacity: Internally reinforced roof, load rated to 100kg when closed, or 35kg when open.
- Warranty: 2-year conditional warranty.
What's Included with the LX27 Gen 2

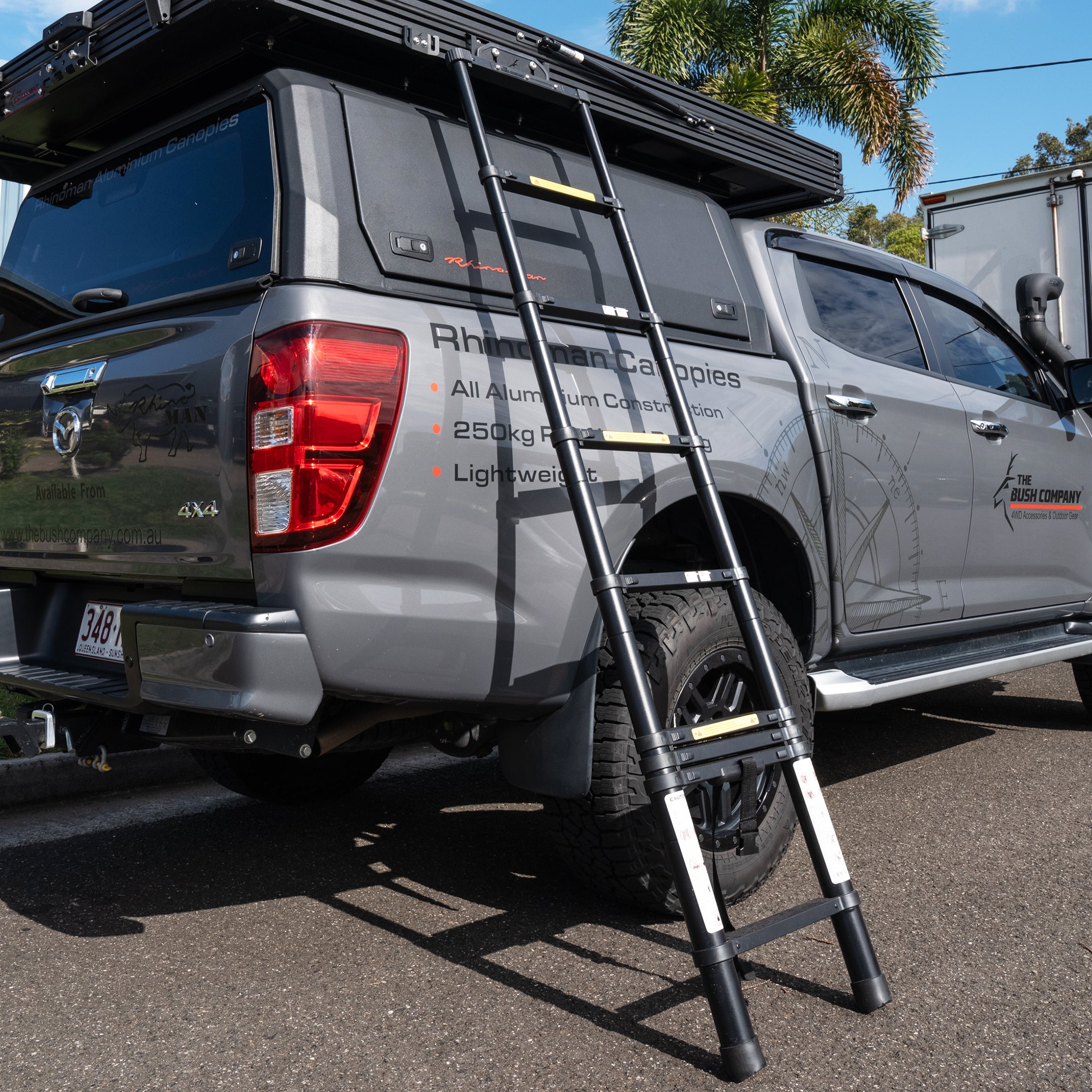

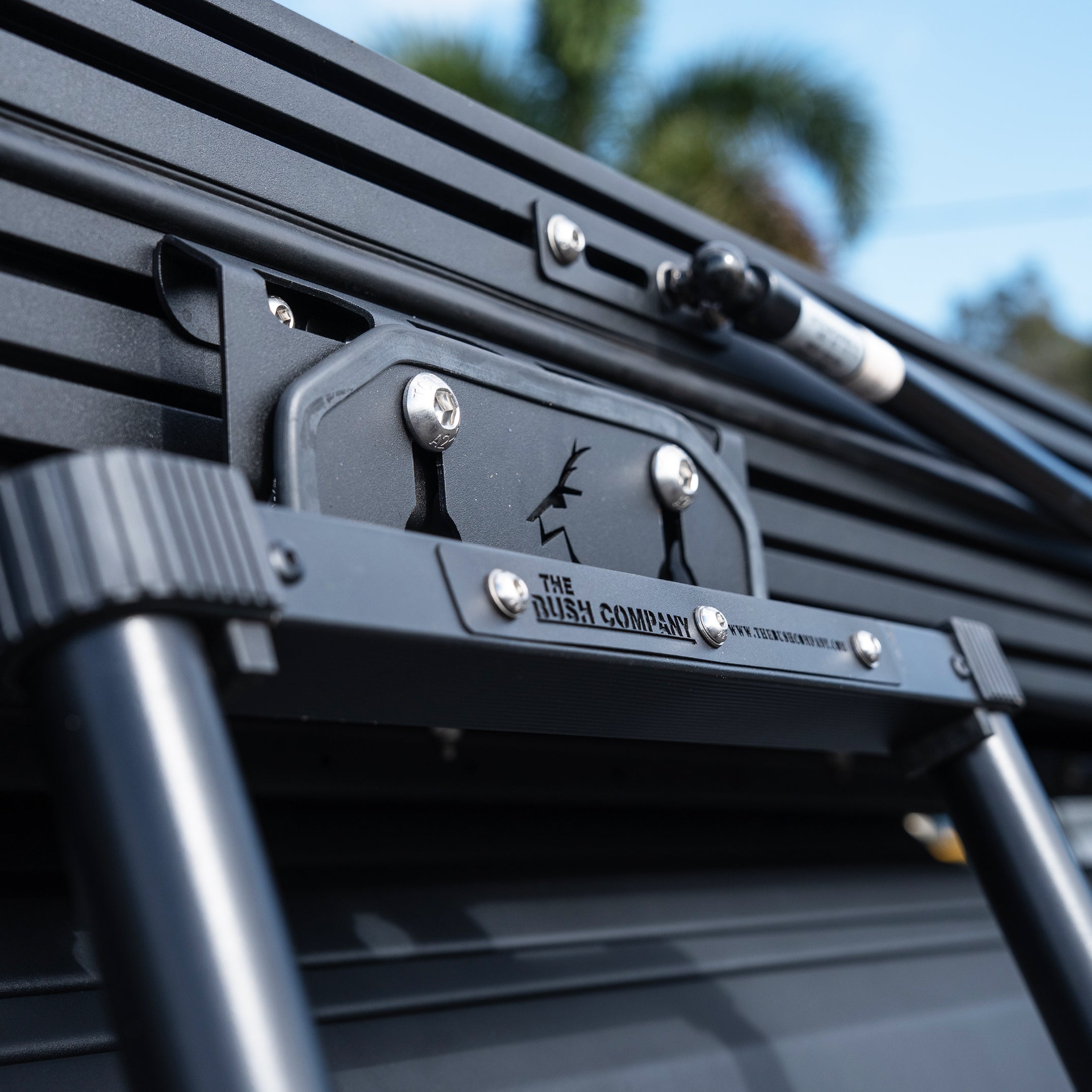

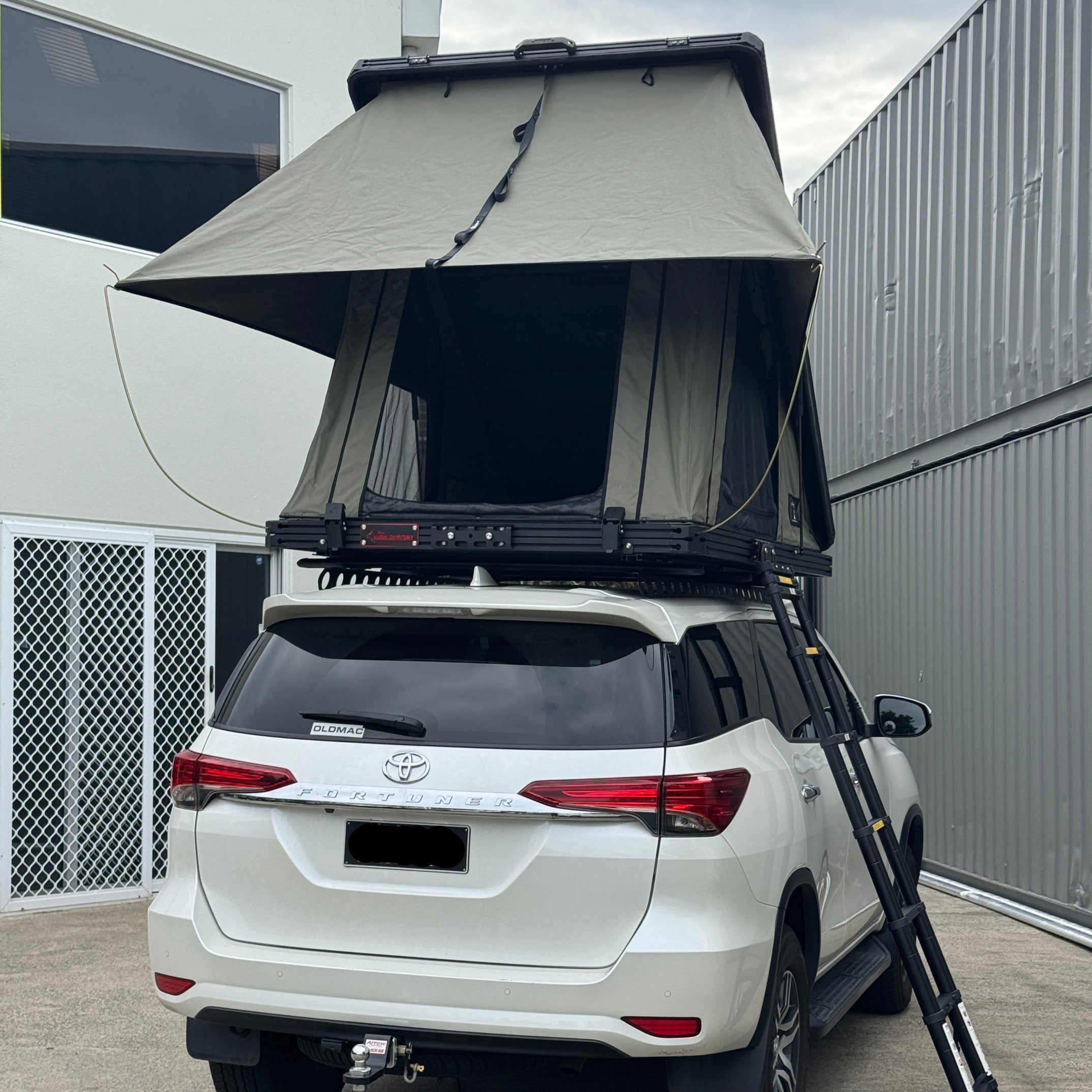

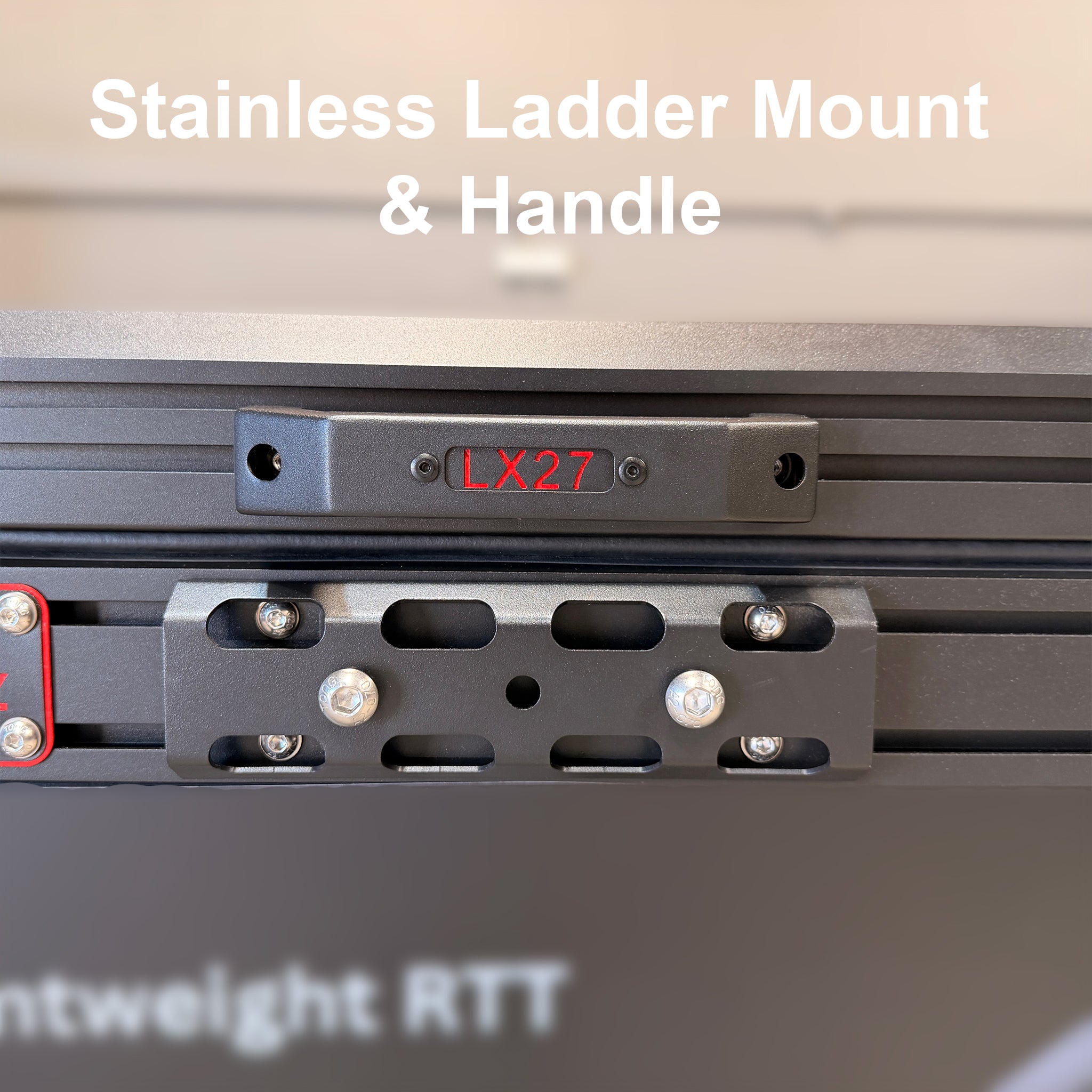

- Ladder: 2.6m Telescopic ladder with angled steps for comfort.

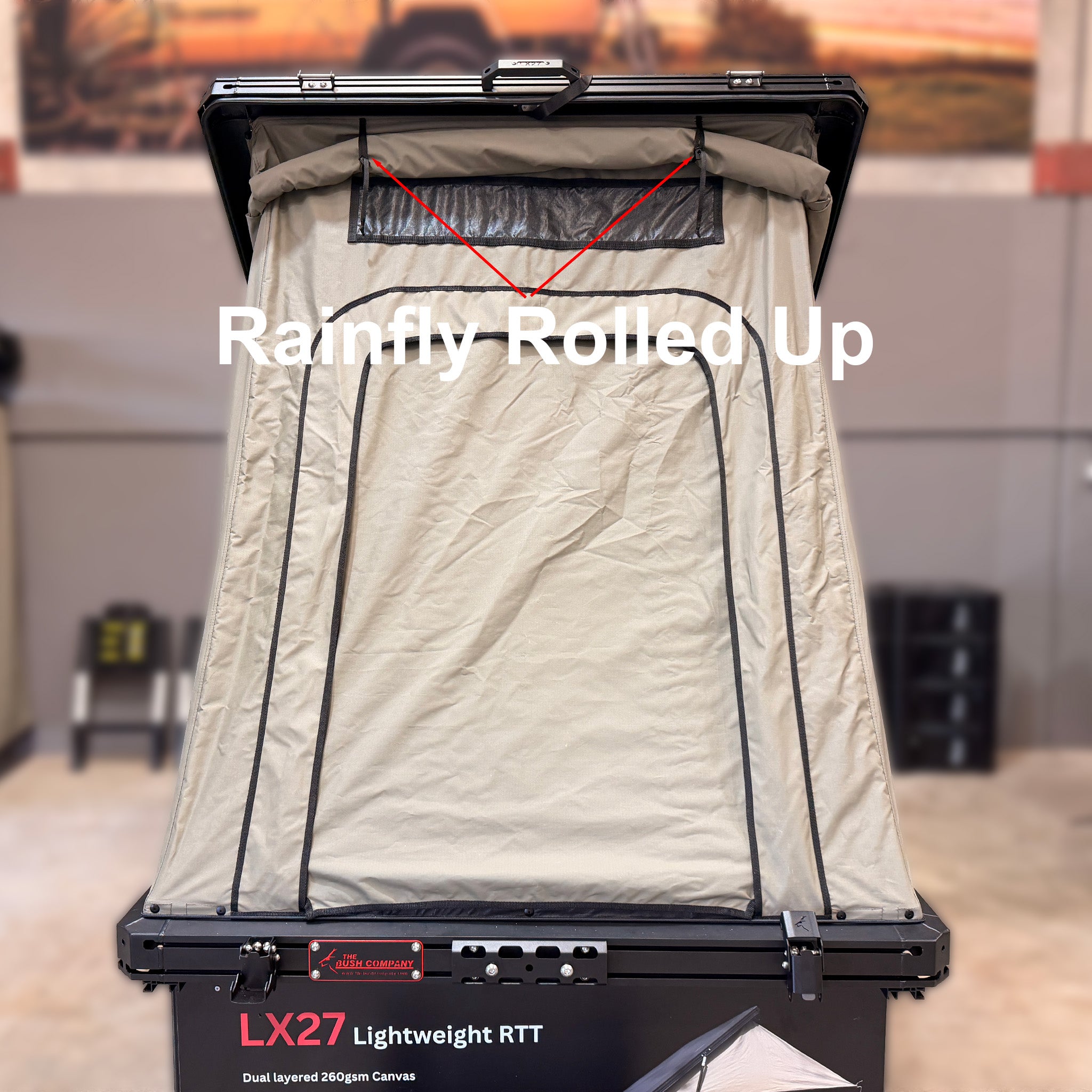

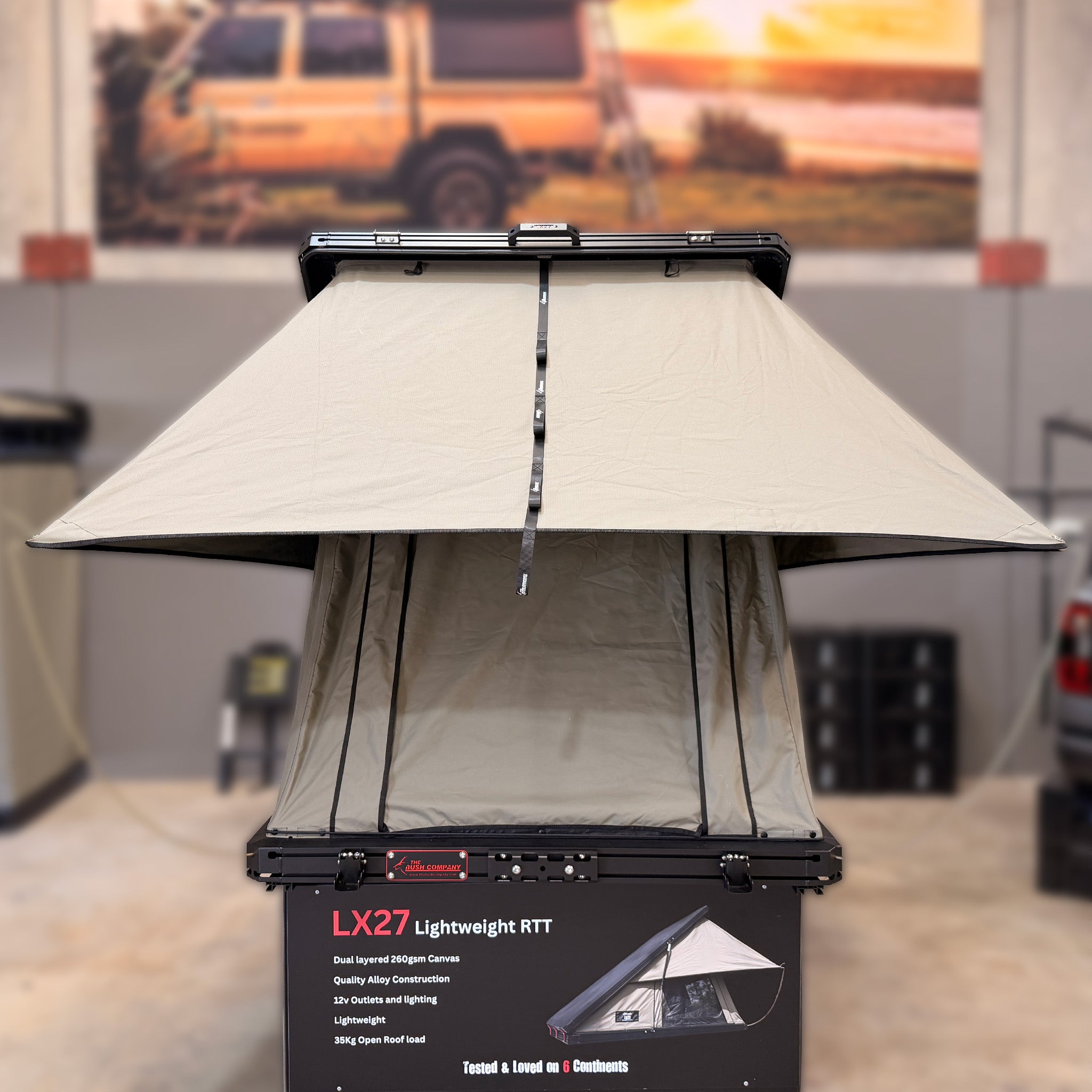

- Rainfly: Large, removable one-piece rainfly with heavy-duty 8mm spring steel poles and adjustable storm straps.
- Mounting: Universal fitting kit and brackets.
- Power:Internal Outlets: Two twin USB-A, USB-C & CIG sockets, mounted discreetly at the foot of the mattress.External Input: External 50AMP Anderson plug connection on the rooftop tent’s underside for secure vehicle power connection.Internal Input: Internal power input via 20Amp WAECO plug.
- Lighting: Pre-wired, integrated dual Tri-Colour dimmable LED light strips.
- Storage:Two roof storage pouches to store clothes, books etc., plus a dedicated clear iPad/tablet pouch.Four large storage pouches on the sides.Two water bottle pockets at the open end.
- Mattress Cover: The mattress features a removable, zippered canvas cover, making it easy to wash and keep your sleep environment fresh.

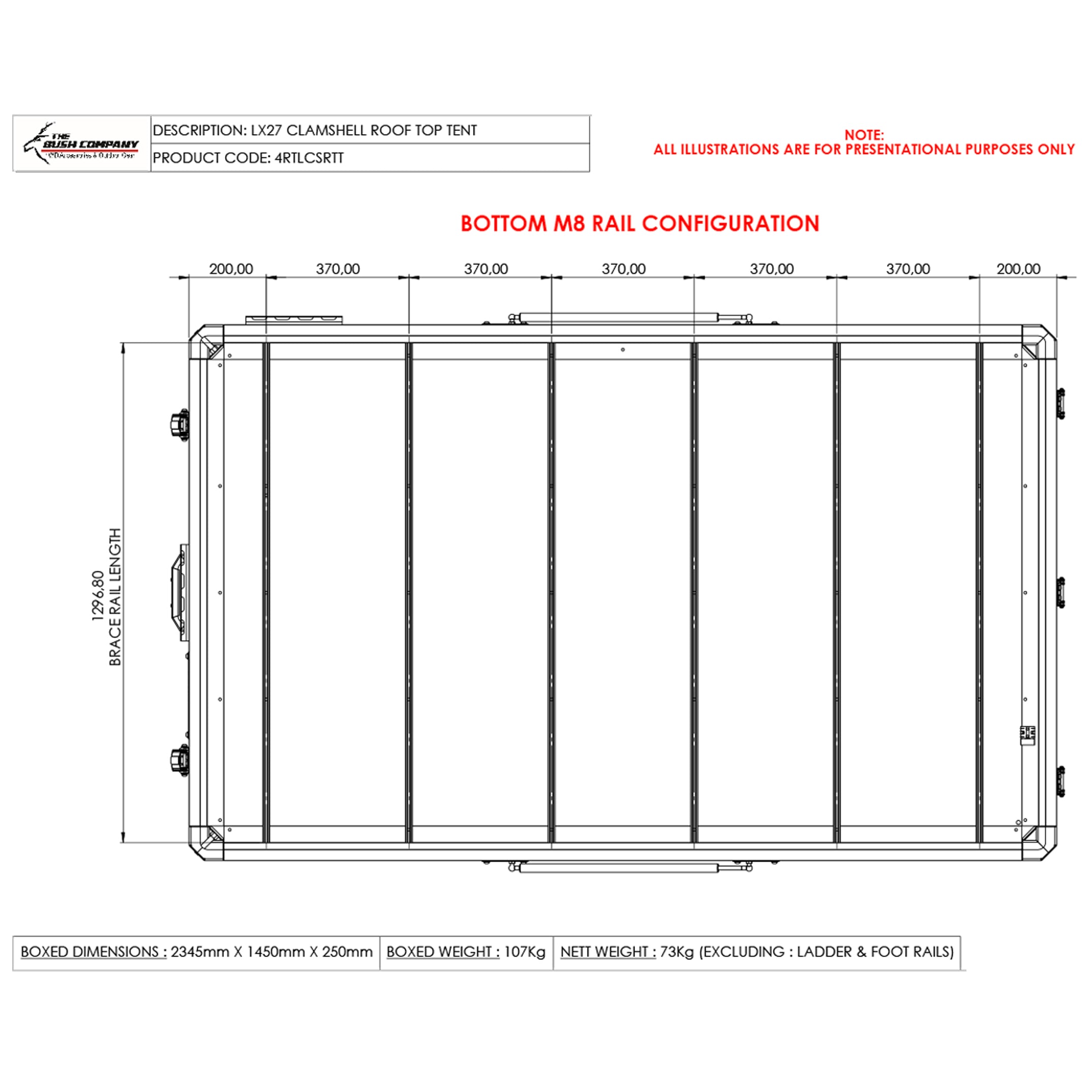

- Optional Mounting: Two optional heavy-duty 20mm high aluminium foot rails with M8 slots can be used to run lengthways underneath the tent for mounting if required.
